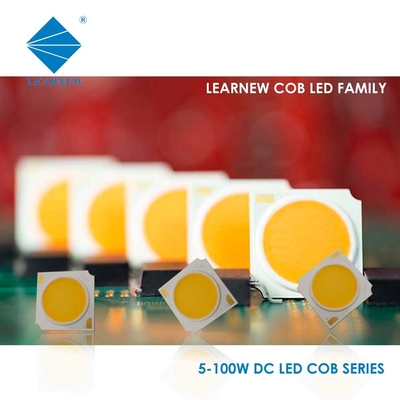

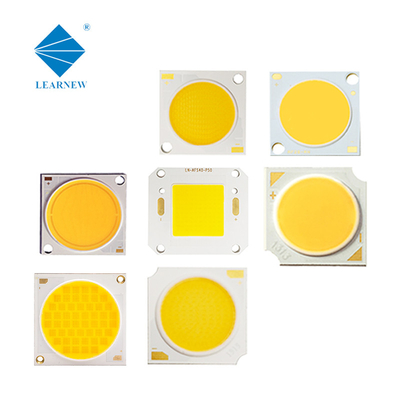

110v 220v High Power Led Chip 1414 1919 2828 4046 5555 10w 20w 100w 1000w Dob Led Cob

Certification
China Shenzhen Learnew Optoelectronics Technology Co., Ltd. certification
China Shenzhen Learnew Optoelectronics Technology Co., Ltd. certification
Customer Reviews
August 25, 2023, I purchased UVA LED chips from Learnew. Learnew delivered the custom UVA chips we requested quickly and with excellent workmanship. It was a pleasure to work with Learnew. He was able to tell me exactly which product would work with my curing printer, saving me a lot of time. They are very professional.

—— Ashraf Trading

October 13, 2023,I received a customized 3535 COB LED Chip .Their attention to detail, timely responses, and on-time delivery have exceeded my expectation.The sample I received is what I need, very bright, I will choose LEARNEW for a long time in the future

—— Hector Bustillo

March 2024,Just received the product and have tried it,The design of these Hight LED chips is outstanding. They are compact, easy to install, and provide excellent illumination. I am extremely satisfied with their performance!

—— Fabio Antista

I am thoroughly impressed with the functionality of these UV LED chips. They offer reliable UV output, high efficiency, and a long lifespan. A great investment for any UV application!

—— Ali Muhammad

I'm Online Chat Now

110v 220v High Power Led Chip 1414 1919 2828 4046 5555 10w 20w 100w 1000w Dob Led Cob

110v 220v High Power Led Chip 1414 1919 2828 4046 5555 10w 20w 100w 1000w Dob Led Cob
110v 220v High Power Led Chip 1414 1919 2828 4046 5555 10w 20w 100w 1000w Dob Led Cob
110v 220v High Power Led Chip 1414 1919 2828 4046 5555 10w 20w 100w 1000w Dob Led Cob 110v 220v High Power Led Chip 1414 1919 2828 4046 5555 10w 20w 100w 1000w Dob Led Cob 110v 220v High Power Led Chip 1414 1919 2828 4046 5555 10w 20w 100w 1000w Dob Led Cob 110v 220v High Power Led Chip 1414 1919 2828 4046 5555 10w 20w 100w 1000w Dob Led Cob 110v 220v High Power Led Chip 1414 1919 2828 4046 5555 10w 20w 100w 1000w Dob Led Cob

Large Image :  110v 220v High Power Led Chip 1414 1919 2828 4046 5555 10w 20w 100w 1000w Dob Led Cob

Product Details:
Place of Origin: China
Brand Name: Learnew
Certification: CE ROHS SGS
Model Number: 1414 1919 2828 3838 4046
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: Negotiable
Packaging Details: Dustproof and electrostatic proof package
Delivery Time: 7-12 working days
Payment Terms: L/C, T/T
Supply Ability: 30000 units per day

110v 220v High Power Led Chip 1414 1919 2828 4046 5555 10w 20w 100w 1000w Dob Led Cob

Description
Product Name: High Power LED Cob Chip Consume Power: 5w 10w 20w 30w 50w 100w 200w

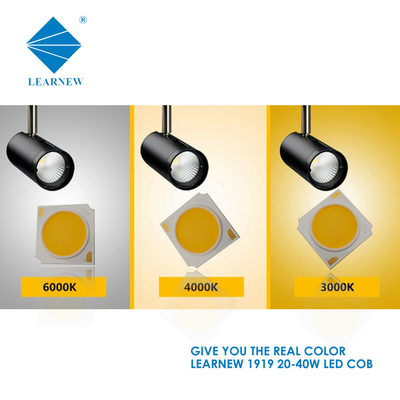

Color Temperature: 3000K/4000K/6500K Efficiency: 110-130lm/w
VF: 35-38v CHIPS: Flip Chip
View Angle: 120DEG CRI: Ra80 Ra90 Ra95 Ra98
Substrate: Aluminum Or Copper Size: 1414 1919 2828 4046 5555
High Light:

100w Dob Led Cob

,

220v High Power Led Chip

,

1000w Dob Led Cob

110v 220v High Power Led Chip 1414 1919 2828 4046 5555 10w 20w 100w 1000w Dob Led Cob 0

Models Consume power CCT LM/W IF VF Whole Size Emit size CRI
1414 series 10-15W 2700-6500K 120-140 280-400mA 35-38V 14x14MM R11mm 70/80/90/95
15-30W 400-800mA
1919 series 25-35W 2700-6500K 120-140 700-1000mA 35-38V 19X19MM R17mm 70/80/90/95
35-50W 900-1200mA
2828 series 40-60W 2700-6500K 120-140 1100-1500mA 35-38V 28X28MM R23mm 70/80/90/95
50-80W 1350-2200mA
3838 series 100w 2700-6500K 100-120lm/w 1800mA 54-58V 38*38mm R30mm >95
200-300w 3600mA
5400mA
4046 series 40-60W 2700-6500K 120-140
110-130
1250-1800mA

30-33V

40X46MM 25*25mm 70/80/90/95
80-120W 2500-4000mA 30-33V
150-200W 3500-4500mA 42-48V

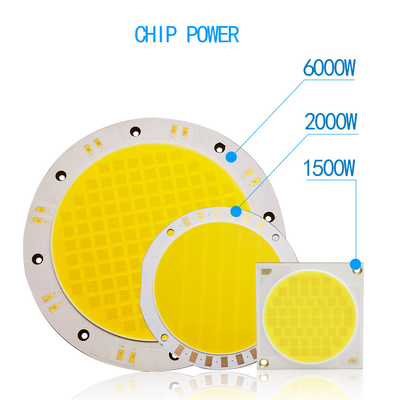

LN-AFR88XW-P1500-72 1500-2000W 2700-6500K 100-140 (7000-9000mA)*6 35-38V R88MM R72MM 70/80/90/95
LN-CFS55XW-P450-49 500-1000W 2700-6500K 100-140 16-21A 45-50V 55*55MM R49MM 70/80/90/95
LN-CFR140XW-P1920-110 4000-6000W 2700-6500K 100-140 (14-20A)*8 34-40V R140MM R110MM 70/80/90/95



110v 220v High Power Led Chip 1414 1919 2828 4046 5555 10w 20w 100w 1000w Dob Led Cob 1

110v 220v High Power Led Chip 1414 1919 2828 4046 5555 10w 20w 100w 1000w Dob Led Cob 2

110v 220v High Power Led Chip 1414 1919 2828 4046 5555 10w 20w 100w 1000w Dob Led Cob 3

110v 220v High Power Led Chip 1414 1919 2828 4046 5555 10w 20w 100w 1000w Dob Led Cob 4

110v 220v High Power Led Chip 1414 1919 2828 4046 5555 10w 20w 100w 1000w Dob Led Cob 5

110v 220v High Power Led Chip 1414 1919 2828 4046 5555 10w 20w 100w 1000w Dob Led Cob 6

110v 220v High Power Led Chip 1414 1919 2828 4046 5555 10w 20w 100w 1000w Dob Led Cob 7




110v 220v High Power Led Chip 1414 1919 2828 4046 5555 10w 20w 100w 1000w Dob Led Cob 8

  • 1,High density
  • 2,High power series
  • 3,Low thermal resistance
  • 4,SDCM<5
  • 5,CRI available in 80/90/95+
  • 6,Flip chip technology
  • 7,Good stability110v 220v High Power Led Chip 1414 1919 2828 4046 5555 10w 20w 100w 1000w Dob Led Cob 9

110v 220v High Power Led Chip 1414 1919 2828 4046 5555 10w 20w 100w 1000w Dob Led Cob 10

110v 220v High Power Led Chip 1414 1919 2828 4046 5555 10w 20w 100w 1000w Dob Led Cob 11

110v 220v High Power Led Chip 1414 1919 2828 4046 5555 10w 20w 100w 1000w Dob Led Cob 12

110v 220v High Power Led Chip 1414 1919 2828 4046 5555 10w 20w 100w 1000w Dob Led Cob 13110v 220v High Power Led Chip 1414 1919 2828 4046 5555 10w 20w 100w 1000w Dob Led Cob 14110v 220v High Power Led Chip 1414 1919 2828 4046 5555 10w 20w 100w 1000w Dob Led Cob 15



FAQ:

Q1: Do you supply OEM,ODM service?
A1: YES,absolutely it can be realized.Learnew focus on OEM & ODM service more than 7 years.

Q2:All the pictures are real photo? A2: Yes, the pictures of all products on this page are 100% real shoot by us.

Q3: How can I get a quotation from you?
A3: Please kindly leave us messages about your needs,including products parameters,application, you contact way and quantity,our
professional team will reply you in one hour here.

Q4: Is there any discount for bulk order?
A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price. Be our fans on WhatsApp or add
learnew opto to “my favorite stores”, you will always get our discount and coupon information at the first time.

Q5: Do you support drop shipping and how much is the shipping cost?
A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the
goods according the address you have left. The shipping cost are based on your order's volume and weight, you can check on WhatsApp
or ask our team.

Q6: How to place an order? A6: You can check the shipping cost and discount
information online, and place order directly on WhatsApp. Or you can contact us for the order details, we will reply you in mins.

Q7: What payment terms are available?
A7: T/T,PayPal, Western Union and Secure Payment.

Q8: What about the lead time?
A8: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples in standard, the delivery
