Product Details:
|
| P/N: | LN-SMD3535RGB-P3-LP/LN-SMD3535RGBW-P4-LP/LN-SMD5050RGBW-P4-MC | Power: | 3W/4W/12W |
|---|---|---|---|
| Whole Size: | 3.5*3.5MM/5.0*5.0MM | CCT: | R=620-630nm G=520-530nm B=460-470nm W=3000K/6000K |
| Substrate: | Ceramic | Application: | 1,LED Stage Light 2,LED Landscape Lighting 3,City Light 4,Smart Home Light |
| High Light: | 5050 High Power SMD LED,3535 High Power SMD LED,RGB/RGBW LED chip |
||

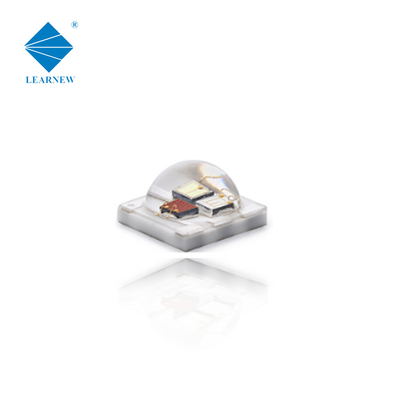

Hot selling 3535 5050 High power SMD LED RGB RGBW 3W 4W 12W high lumens led chips

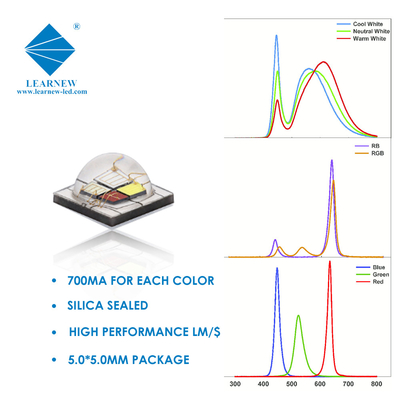

High power RGB/RGBW LED chip specifications
| PART NUMBER | POWER | CCT | LUMINUOUS EFF | CHIPS | IF | VF | CIRCUIT | WHOLE SIZE | LES | VIEW ANGLE | SUBSTRATE |
| LN-SMD3535RGB-P3-LP | 3W | R=620-630nm G=520-530nm B=460-470nm |
R=50-80lm G=80-120lm B=20-40lm |
SANAN | 350mA | R=2.0-2.4V G=3.0-3.4V B=3.0-3.4V |
1PCS in series 3PCS in parallel |
3.5*3.5MM | R1.5MM | 120° | Ceramic |

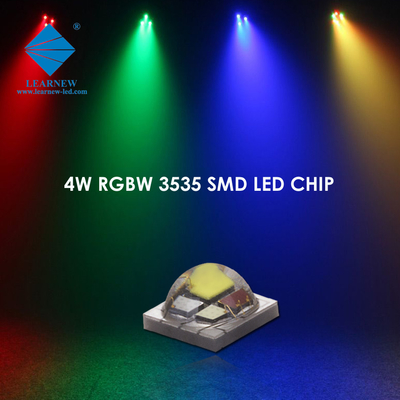

| LN-SMD3535RGBW-P4-LP | 4W | R=620-630nm G=520-530nm B=460-470nm W=3000K/6000K |
R=30-40lm G=60-70lm B=20-30lm W=70-90lm |
Epiled & Flip CHIP | 350mA | R=2.0-2.4V G=3.0-3.4V B=3.0-3.4V W=3.0-3.4V |
1PCS in series 1PCS in parallel 3 circuit |
3.5*3.5MM | R1.5MM | 120° | Ceramic |

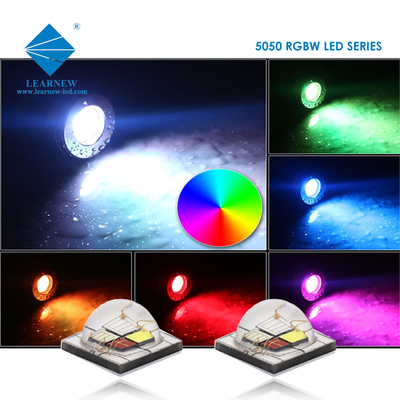

| LN-SMD5050RGBW-P4-MC | 12W | R=620-630nm G=520-530nm B=460-470nm W=3000K/6000K |
R=100-150lm G=150-200lm B=30-60lm W=180-240lm |
Epistar & Sanan | 700mA | R=2.0-2.4V G=3.0-3.4V B=3.0-3.4V W=3.0-3.4V |
1PCS in series 1PCS in parallel 4 circuit |
5.0*5.0MM | R2.26MM | 120° | Ceramic |

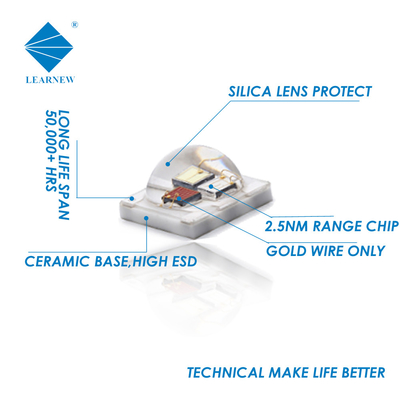

RGB RGBW LED Design Advantage
1,Ceramic leadframe.
2,High ESD pass
3,Standard A Class chips.
4,Cost performance.
5,Gold wire bond.
6,Easy reflow sodering.
Application
1,LED stage light
2,LED landscape lighting
