Product Details:
|
| Name: | Uv Light For Resin Curing | VF: | AC220V |
|---|---|---|---|
| Signal Port Voltage: | 0-12V | Cooling Method: | Water Cooling |
| Optical Intensity: | >10w/cm2 | LENS: | QUARTZ GLASS LENS |
| Lighting Area: | 300mm*20mm | DIMENSION: | 310mm(L)*48mm (W)*68mm(H) |
| High Light: | 1200w uv light curing lamp,uv light curing lamp 395 nm,led uv curing systems for printing |
||
UV LED Curing System 1200W 395nm Switching signal Dimming& High
Efficiency for Exposure machines ＆ 3D printer
1200W 395nm UV Curing System Product Specifications
| Models | LN-CP-600 |
| Dominant Wavelength | 395nm |
| Recommend Radiation distance | 3-10mm |
| Control method | Switching signal Dimming 0-1200W |
| VIEW ANGLE | 120° |

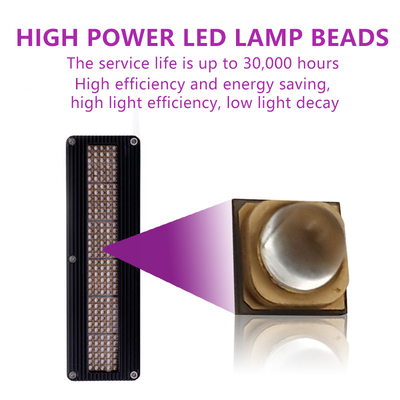

| CHIPS | High power SMD or COB |
Curing system Design Advantage:
1. Long lifespan
2. Low thermal resistance
3. High efficiency (45%-55%)
4. Inorganic encapsulation
5. High density and intensity
6. Screw-free assembly for high power curing use
7. Multi-wavelength (365nm/385nm/395nm/405nm/420nm) in one design
8. Optical optimization with special view angle in 30°, 60°, or 120°
LED Curing System Appilcation:
1,UV curing
2,LED growing market
3,Offset printer
4,3D printer
5,Exposure machines
6,Inkjet printer
7,High intensity curing Market like 3KW,7kW,15KW...

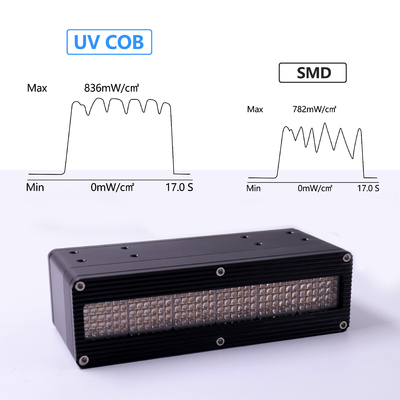

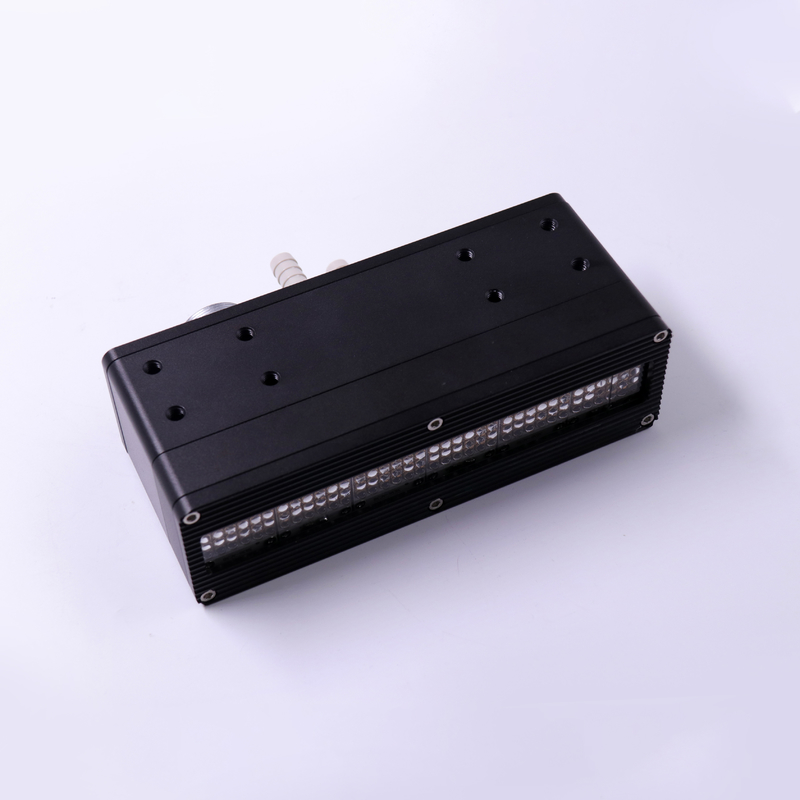

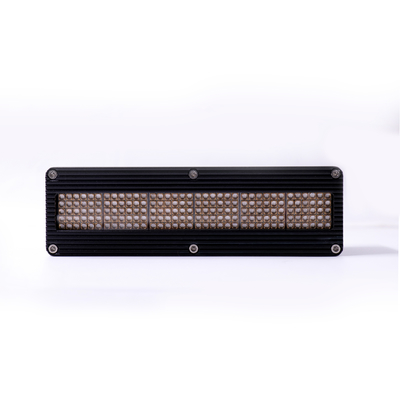

UVA System Product picture
THE DEGREE OF LIGHT CAN BE CUSTOMIZED
It is necessary to communicate with our engineering team in advance toconfirm the design requirements and technical details of the
lens to ensure the customized quality and effect of the lens.
Photoconversion in water-cooled solidification systems
UV light generation: A UV lamp or LED light source produces UV light. Transmission of UV light: The UV light passes through a window made of quartz or fused silica into the curing chamber. Absorption by photoinitiator: A photoinitiator in the UV-curable coating or adhesive absorbs the UV light, which causes a chemical reaction to start the curing process. Heat generation: The curing process creates heat, which can raise the temperature in the curing chamber. Water cooling: Water flows through the curing chamber to remove the heat created during the curing process. Temperature regulation: The water temperature is controlled to keep a stable curing temperature, which can help ensure consistent and effective curing. In summary, water-cooled curing systems use UV light to start the curing process, which creates heat that is cooled by water to keep a stable curing temperature. This process allows for efficient and effective curing while reducing the risk of overheating and damage to the curing system.
UV light generation: A UV lamp or LED light source emits UV light. Transmission of UV light: The UV light travels through a window of quartz or fused silica into the curing chamber. Absorption by photoinitiator: A photoinitiator in the UV-curable coating or adhesive captures the UV light, which triggers a chemical reaction to begin the curing process. Heat generation: The curing process releases heat, which can increase the temperature in the curing chamber. Water cooling: Water runs through the curing chamber to cool down the heat released during the curing process. Temperature regulation: The water temperature is adjusted to maintain a stable curing temperature, which can help ensure consistent and effective curing. In short, water-cooled curing systems use UV light to trigger the curing process, which releases heat that is cooled by water to maintain a stable curing temperature. This process allows for efficient and effective curing while avoiding the risk of overheating and damage to the curing system.
3D/Inkjet Printer UV LED Curing System FAQ
Q1: Can you provide OEM,ODM service?
A1: Of course, we can definitely do that.
Q2: Are the pictures all real photos?
A2: Yes, the pictures of all products on this page are 100% taken by us.
Q3: How can I get a quote from you?
A3: Please kindly leave us messages about your requirements,including products and quantity,our professional team will reply you very soon (mostly within few hours).
Q4: Is there any discount for large order?
A4: Yes, if you need large order or you want customized products, we can offer wholesale price.
Q5: Do you support drop shipping and how much is the shippping cost?
A5: Yes, we support drop shipping. You should leave the receiver’s information when you place the order, then we will send the goods according the address you have left. The shipping cost are based on your order’s volume and weight, and it can be calculated.
Q6: How to make an order?
A6: If you want to make an order, Please feel free to send us an inquiry email or contact us by trademanager online, we will reply you within 24hours(working day).
Q7: What payment methods are available?
A7: T/T,PayPal, Western Union and Secure Payment.
Q8: What about the delivery time?
A8: It depends on the order quantity. In general, delivery time is about 3-75working days. For samples, the delivery could be as fast as same day.
