Offset printer UV 1200W 395nm LED Water Cooling method 12W/cm2 Curing system for Exposure machines

Certification
China Shenzhen Learnew Optoelectronics Technology Co., Ltd. certification
China Shenzhen Learnew Optoelectronics Technology Co., Ltd. certification
Customer Reviews
August 25, 2023, I purchased UVA LED chips from Learnew. Learnew delivered the custom UVA chips we requested quickly and with excellent workmanship. It was a pleasure to work with Learnew. He was able to tell me exactly which product would work with my curing printer, saving me a lot of time. They are very professional.

—— Ashraf Trading

October 13, 2023,I received a customized 3535 COB LED Chip .Their attention to detail, timely responses, and on-time delivery have exceeded my expectation.The sample I received is what I need, very bright, I will choose LEARNEW for a long time in the future

—— Hector Bustillo

March 2024,Just received the product and have tried it,The design of these Hight LED chips is outstanding. They are compact, easy to install, and provide excellent illumination. I am extremely satisfied with their performance!

—— Fabio Antista

I am thoroughly impressed with the functionality of these UV LED chips. They offer reliable UV output, high efficiency, and a long lifespan. A great investment for any UV application!

—— Ali Muhammad

I'm Online Chat Now

Offset printer UV 1200W 395nm LED Water Cooling method 12W/cm2 Curing system for Exposure machines

Offset printer UV 1200W 395nm LED Water Cooling method 12W/cm2 Curing system for Exposure machines
Offset printer UV 1200W 395nm LED Water Cooling method 12W/cm2 Curing system for Exposure machines
Offset printer UV 1200W 395nm LED Water Cooling method 12W/cm2 Curing system for Exposure machines Offset printer UV 1200W 395nm LED Water Cooling method 12W/cm2 Curing system for Exposure machines Offset printer UV 1200W 395nm LED Water Cooling method 12W/cm2 Curing system for Exposure machines Offset printer UV 1200W 395nm LED Water Cooling method 12W/cm2 Curing system for Exposure machines

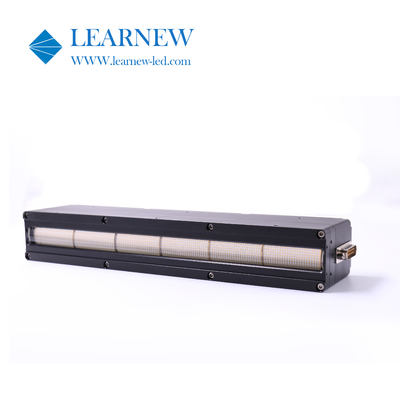

Large Image :  Offset printer UV 1200W 395nm LED Water Cooling method 12W/cm2 Curing system for Exposure machines

Product Details:
Place of Origin: China
Brand Name: Learnew
Certification: CE RoHs ISO SGS
Model Number: LN-CP-600
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Customized with specific carton box
Delivery Time: 4-8 week days
Payment Terms: L/C, T/T,Western Union,Paypal
Supply Ability: 1000pcs/month

Offset printer UV 1200W 395nm LED Water Cooling method 12W/cm2 Curing system for Exposure machines

Description
Power: 1200W Dominant Wavelength: 395nm
Optical Intensity: >12w/cm2 Recommend Radiation Distance: 3-10mm
DIMENSION: 310mm(L)*48mm (W)*68mm(H) Lighting Area: 300mm*20mm

Offset printer UV 1200W 395nm LED Water Cooling method 12W/cm2 Curing system for Exposure machines



Parameters:

Power:1200W(MAX)
Wavelength:395nm
Dimension:310mm(L)*48mm (W)*68mm(H)
Lighting Area:300mm*20mm
Optical Intensity:>12w/cm2
Recommend Radiation distance:3-10mm
Control method:Switching signal:Dimming 0-1200W
Cooling method:Water cooling
Design Advantage:

1,Long life span


2,low thermal resistance


3,High effiency 45%-55%


4,Ingorganic encapsulation


5,High density and intensity


6,Screw free assemble for high power curing use


7,Multi wavelength 365nm/385nm/395nm/405nm/420nm in one design


8,Optical optimal with special view angle in 30DEG, 60DEG or 120DEG


Appilcation:

1,UV curing


2,LED growing market


3,Offset printer


4,3D printer


5,Exposure machines


6,Inkjet printer


7,High intensity curing Market like 3KW,7kW,15KW..


CHIPS:High power SMD or COB
LENS:QUARTZ GLASS LENS
VIEW ANGLE:120°
Power adjustment:10-100%
VF:AC 220V
Signal Port Voltage:0-12V

Warranty:10,000Hrs or 2 years

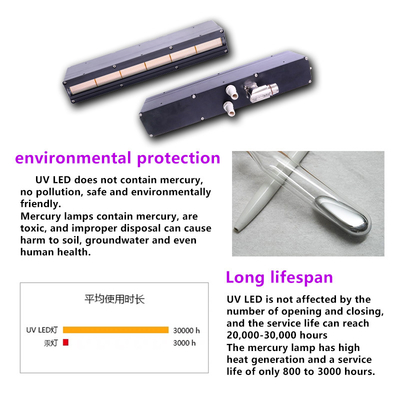

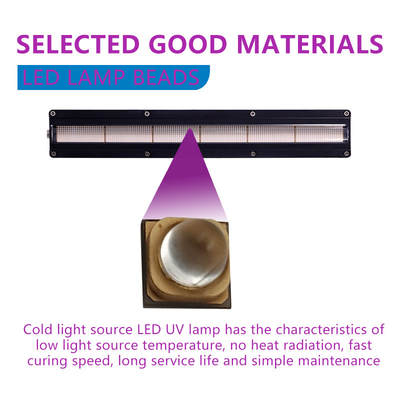

1200W UV LED Curing system's pictures(Design Advantages and Applications):

Offset printer UV 1200W 395nm LED Water Cooling method 12W/cm2 Curing system for Exposure machines 0
Offset printer UV 1200W 395nm LED Water Cooling method 12W/cm2 Curing system for Exposure machines 1
Offset printer UV 1200W 395nm LED Water Cooling method 12W/cm2 Curing system for Exposure machines 2

Learnew Customized UV LED System for curing printing machines procedures

Offset printer UV 1200W 395nm LED Water Cooling method 12W/cm2 Curing system for Exposure machines 3

UV LED 395nm System package

Offset printer UV 1200W 395nm LED Water Cooling method 12W/cm2 Curing system for Exposure machines 4

Shipping Method for UV LED System

Offset printer UV 1200W 395nm LED Water Cooling method 12W/cm2 Curing system for Exposure machines 5

FAQ:



Q1: Do you supply OEM,ODM service?
A1: YES,absolutely it can be realized.Learnew focus on OEM & ODM service more than 7 years.

Q2:All the pictures are real photo?

A2: Yes, the pictures of all products on this page are 100% real shoot by us.

Q3: How can I get a quotation from you?
A3: Please kindly leave us messages about your needs,including products parameters,application, you contact way and quantity,our professional team will reply you in one hour here.

Q4: Is there any discount for bulk order?
A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price. Be our fans on alibaba or add learnew opto to “my favorite stores”, you will always get our discount and coupon information at the first time.

Q5: Do you support drop shipping and how much is the shipping cost?
A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the goods according the address you have left. The shipping cost are based on your order's volume and weight, you can check on alibaba or ask our team.

Q6: How to place an order?
A6: You can check the shipping cost and discount information online, and place order directly on Alibaba. Or you can contact us for the order details, we will reply you in mins.

Q7: What payment terms are available?
A7: T/T,PayPal, Western Union and Secure Payment.

Q8: What about the lead time?
A8: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples in standard, the delivery could be 3 days.ng Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes
