Product Details:
|
| Name: | UV-LAMP SYSTEM | POWER: | 600w(Max)/1200w(Max) |
|---|---|---|---|
| VF: | AC220V | Dominant Wavelength: | 395nm |
| Recommend Radiation Distance: | 3-10mm | Signal Port Voltage: | 0-12V |
| Power Adjustment: | 10-100% | VIEW ANGLE: | 120° |
| High Light: | 1200w led curing system,water cooling smd led curing system,600w uv curing systems for printing |
||
UV LED Curing System AC220V 600W ＆ 1200W 395nm with LSwitching signal
Dimming & Water cooling for Growing Market & Offset printer
4600W 395nm UV Curing System Product Specifications
| model | LN-CP-300 | LN-CP-600 |
| Dominant Wavelength | 395nm | |
| Recommend Radiation distance | 3-10mm | |
| Cooling method 1 | Water cooling | |
| Control method 2 | Switching signal Dimming 0-500W | Switching signal Dimming 0-1200W |
| Lighting Area | 150mm*20mm | 300mm*20mm |
| Signal Port Voltage | 0-12V | |
| Power adjustment | 10-100% | |
| DIMENSION | 160mm(L)*48mm (W)*68mm(H) | 310mm(L)*48mm (W)*68mm(H) |
| CHIPS | High power SMD or COB | |
Curing system Design Advantage:
1. High density and intensity
2. Multi wavelength 365nm/385nm/395nm/405nm/420nm in one design
3. Optical optimal with special view angle in 30DEG, 60DEG, or 120DEG
4. Low thermal resistance
5. Screw-free assembly for high-power curing
6. Long lifespan
7. Inorganic encapsulation
8. High efficiency (45%-55%)
LED Curing System Appilcation:
1. Inkjet printer
2. Exposure machines
3. High intensity curing market like 3KW, 7kW, 15KW
4. Offset printer
5. 3D printer
6. LED growing market
7. UV curing

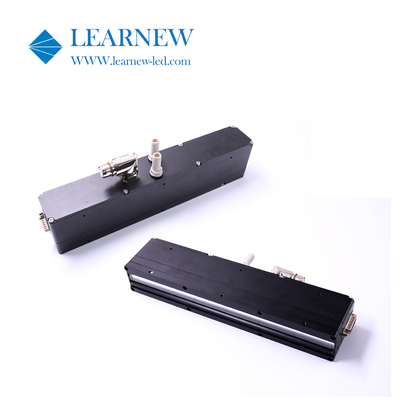

UV System Product picture
IT HAS BEEN PROMOTED
This product is especially suitable for UV curing, LED growing market, offset presses, 3D printers, exposure machines, inkjet printers, and high-intensity curing markets such as 3 kW, 7 kW, and 15 kW.
3D/Inkjet Printer UV LED Curing System FAQ
A1: UV curing LED refers to a type of light-emitting diode that emits ultraviolet light, specifically UVA at 395nm, used for curing or drying materials, such as adhesives, coatings, and inks.
Q2: What are the advantages of UV curing LED compared to traditional curing methods?
A2: UV curing LED offers several advantages, including faster curing times, energy efficiency, precise control using a switching signal, dimming capability, reduced heat generation, and a longer lifespan compared to traditional curing methods.
Q3: How long does the UV curing LED last?
A3: The lifespan of UV curing LED can vary depending on factors such as usage conditions and quality. Generally, UV curing LEDs have a lifespan ranging from 10,000 to 20,000 hours.
Q4: Can the UV curing LED be used with different materials?
A4: Yes, UV curing LED can be used with various materials, including adhesives, coatings, inks, and resins, as long as the material is designed to cure or dry under UVA light at 395nm.
Q5: Are there different power options available for UV curing LED?
A5: Yes, UV curing LED products come in different power options to accommodate various curing requirements. Common power options include low-power UV curing LED systems for smaller applications and high-power UV curing LED systems for larger or industrial-scale applications.
Q6: Are there safety precautions to consider when using UV curing LED?
A6: Yes, UV curing LED emits ultraviolet light, which can be harmful to the eyes and skin. It is important to use appropriate protective measures, such as wearing UV-blocking safety glasses, and following safety guidelines provided by the manufacturer.
Q7: How do I control the intensity or curing time with UV curing LED?
A7: UV curing LED systems often come with controls or adjustable settings to regulate the intensity and curing time. The control method typically involves switching signals and dimming capability to precisely control the UV output.
Q8: Can UV curing LED be integrated into existing production lines?
A8: Yes, UV curing LED systems are designed to be easily integrated into existing production lines. They can be customized or adapted to fit specific production processes or machinery.
