Customized UV LED Curing System 2000W 2500W Suitable For Printing Machine

Customized UV LED Curing System 2000W 2500W Suitable For Printing Machine
Customized UV LED Curing System 2000W 2500W Suitable For Printing Machine
Customized UV LED Curing System 2000W 2500W Suitable For Printing Machine Customized UV LED Curing System 2000W 2500W Suitable For Printing Machine Customized UV LED Curing System 2000W 2500W Suitable For Printing Machine Customized UV LED Curing System 2000W 2500W Suitable For Printing Machine

Large Image :  Customized UV LED Curing System 2000W 2500W Suitable For Printing Machine

Product Details:
Place of Origin: China
Brand Name: Learnew
Certification: CE RoHs ISO SGS
Model Number: LN-CP-1250
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Customized with specific carton box
Delivery Time: 4-8 week days
Payment Terms: L/C, T/T, Western Union,Paypal
Supply Ability: 1000pcs/month

Customized UV LED Curing System 2000W 2500W Suitable For Printing Machine

Description
Power: 2500W Dominant Wavelength: 395nm
Optical Intensity: >20w/cm2 Recommend Radiation Distance: 3-10mm
DIMENSION: 249mm(L)*56mm (W)*25.5mm(H) Lighting Area: 175mm*20mm
High Light:

Customized UV LED Curing System

,

2000W UV LED Curing System

,

UV Water Cooling Curing System

Support highly customized uv led curing system 395nm 2000W 2500W suitable for printers printing machine

LN-CP-1250 2500W UV LED System

Parameters

Power:2500W(MAX)
Wavelength:395nm
Dimension:249mm(L)*56mm (W)*25.5mm(H)
Lighting Area:175mm*20mm
Optical Intensity:>16w/cm2
Recommend Radiation distance:3-10mm
Control method:Switching signal:Dimming 0-2500W
Cooling method:Water cooling
Design Advantage:



1,Long life span


2,low thermal resistance


3,High effiency 45%-55%


4,Ingorganic encapsulation


5,High density and intensity


6,Screw free assemble for high power curing use


7,Multi wavelength 365nm/385nm/395nm/405nm/420nm in one design


8,Optical optimal with special view angle in 30DEG, 60DEG or 120DEG


Appilcation:

1,UV curing


2,LED growing market


3,Offset printer


4,3D printer


5,Exposure machines


6,Inkjet printer




7,High intensity curing Market like 3KW,7kW,15KW..


CHIPS:High power SMD or COB
LENS:QUARTZ GLASS LENS
VIEW ANGLE:120°
Power adjustment:10-100%
VF:AC 220V
Signal Port Voltage:0-12V

Warranty:10,000Hrs or 2 years

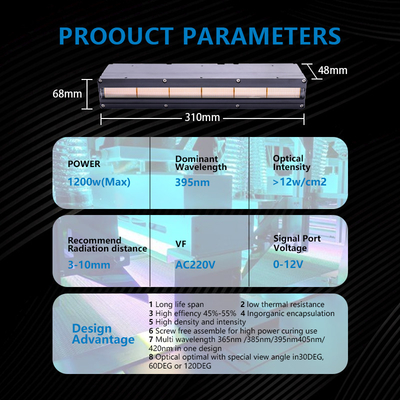

2500W 395nm UV LED System Design Advantages and Applications

Customized UV LED Curing System 2000W 2500W Suitable For Printing Machine 0

Customized UV LED Curing System 2000W 2500W Suitable For Printing Machine 1



Customized UV LED Curing System 2000W 2500W Suitable For Printing Machine 2

UV LED Curing System customized service lines

Customized UV LED Curing System 2000W 2500W Suitable For Printing Machine 3

Package Info&Shipping Info for the UV LED System

Customized UV LED Curing System 2000W 2500W Suitable For Printing Machine 4

Customized UV LED Curing System 2000W 2500W Suitable For Printing Machine 5

FAQ:



Q1: Do you supply OEM,ODM service?
A1: YES,absolutely it can be realized.Learnew focus on OEM & ODM service more than 7 years.

Q2:All the pictures are real photo?

A2: Yes, the pictures of all products on this page are 100% real shoot by us.

Q3: How can I get a quotation from you?
A3: Please kindly leave us messages about your needs,including products parameters,application, you contact way and quantity,our professional team will reply you in one hour here.

Q4: Is there any discount for bulk order?
A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price. Be our fans on alibaba or add learnew opto to “my favorite stores”, you will always get our discount and coupon information at the first time.

Q5: Do you support drop shipping and how much is the shipping cost?
A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the goods according the address you have left. The shipping cost are based on your order's volume and weight, you can check on alibaba or ask our team.

Q6: How to place an order?
A6: You can check the shipping cost and discount information online, and place order directly on Alibaba. Or you can contact us for the order details, we will reply you in mins.

Q7: What payment terms are available?
A7: T/T,PayPal, Western Union and Secure Payment.

Q8: What about the lead time?
A8: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples in standard, the delivery could be 3 days.ng Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes
