Product Details:
|
| Power: | 4600W | Dominant Wavelength: | 395nm |
|---|---|---|---|
| Optical Intensity: | >16w/cm2 | Recommend Radiation Distance: | 3-10mm |
| DIMENSION: | 574mm(L)*100mm(W)*100mm(H) | Lighting Area: | 330mm*16mm |

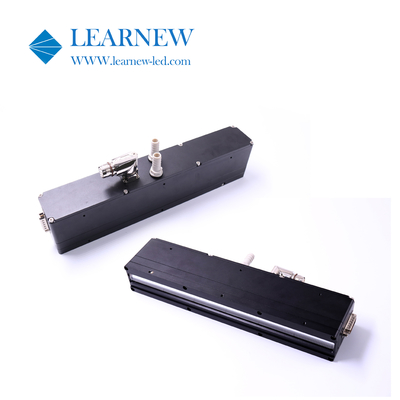

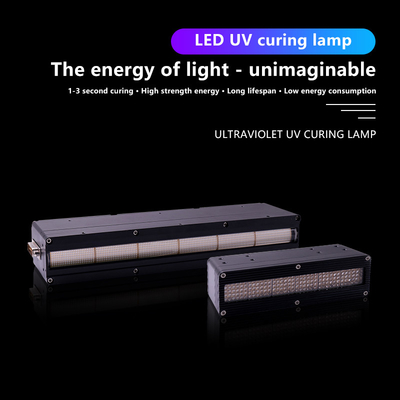

LN-CP-2300 4600W UV LED System
Parameters
Power:4600W(MAX)
Wavelength:395nm
Dimension:574mm(L)*100mm(W)*100mm(H)
Lighting Area:330mm*16mm
Optical Intensity:>16w/cm2
Recommend Radiation distance:3-10mm
Control method:Switching signal:Dimming 0-4600W
Cooling method:Water cooling
Design Advantage:
1,Long life span
2,low thermal resistance
3,High effiency 45%-55%
4,Ingorganic encapsulation
5,High density and intensity
6,Screw free assemble for high power curing use
7,Multi wavelength 365nm/385nm/395nm/405nm/420nm in one design
8,Optical optimal with special view angle in 30DEG, 60DEG or 120DEG
Appilcation:
1,UV curing
2,LED growing market
3,Offset printer
4,3D printer
5,Exposure machines
6,Inkjet printer
7,High intensity curing Market like 3KW,7kW,15KW..
CHIPS:High power SMD or COB
LENS:QUARTZ GLASS LENS
VIEW ANGLE:120°
Power adjustment:10-100%
VF:AC 220V
Signal Port Voltage:0-12V
Warranty:10,000Hrs or 2 years
4600W 395nm UV LED System Design Advantages and Applications
UV LED Curing System customized service lines
Package Info&Shipping Info for the UV LED System
FAQ:
Q1: Do you supply OEM,ODM service?
A1: YES,absolutely it can be realized.Learnew focus on OEM & ODM service more than 7 years.
Q2:All the pictures are real photo?
