Product Details:
|
| POWER: | 1200W | Dominant Wavelength: | 395nm |
|---|---|---|---|
| Optical Intensity: | >12w/cm2 | Recommend Radiation Distance: | 3-10mm |
| Control Method: | Switching Signal Dimming 0-1200W | Cooling Method: | Water Cooling |
| Signal Port Voltage: | 0-12V | VF: | AC220V |
| Power Adjustment: | 10-100% | DIMENSION: | 310mm(L)*48mm (W)*68mm(H) |
| Lighting Area: | 150mm*20mm | VIEW ANGLE: | 120° |
1200W UVA Curing System 395nm AC220V Switching signal Dimming 0-1200W Water cooling High power SMD or COB UV System
1200W UVA Systems specifications
| UV-A | POWER | Dominant Wavelength | Optical Intensity | Recommend Radiation distance | Cooling method | Signal Port Voltage | VF | Power adjustment | DIMENSION | Lighting Area | VIEW ANGLE | LENS | CHIPS |
| LN-CP-600 | 1200w(Max) | 395nm | >12w/cm2 | 3-10mm | Water cooling | 0-12V | AC220V | 10-100% | 310mm(L)*48mm (W)*68mm(H) | 300mm*20mm | 120° | QUARTZ GLASS LENS | High power SMD or COB |
UVA Systems Advantages
1,Long life span
2,low thermal resistance
3,High effiency 45%-55%
4,Ingorganic encapsulation
5,High density and intensity
6,Screw free assemble for high power curing use
7,Multi wavelength 365nm/385nm/395nm/405nm/420nm in one design
8,Optical optimal with special view angle in 30DEG, 60DEG or 120DEG
UVA LED Systems Application
1,UV curing
2,LED growing market
3,Offset printer
4,3D printer
5,Exposure machines
6,Inkjet printer
7,High intensity curing Market like 3KW,7kW,15KW...

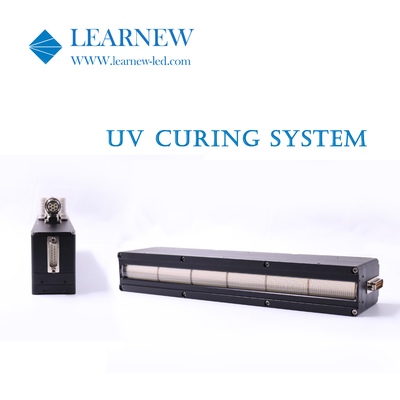

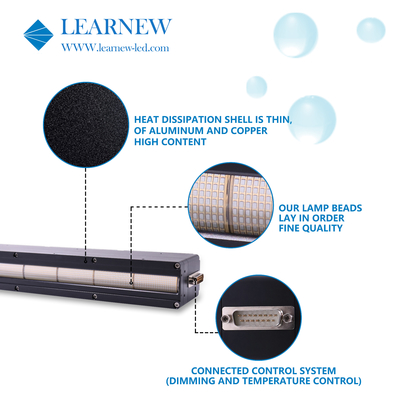

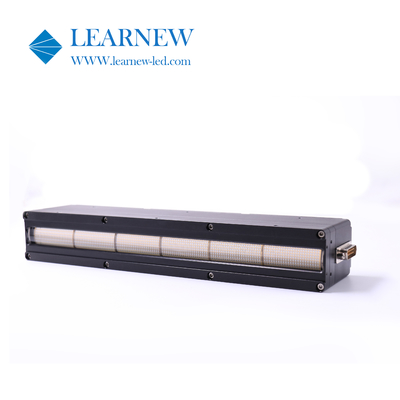

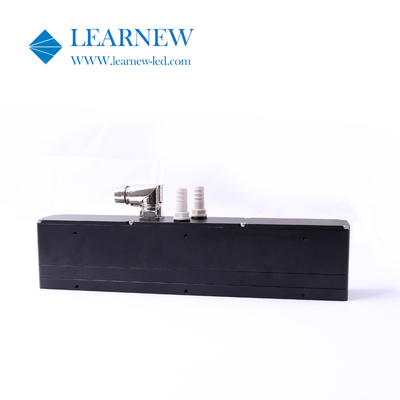

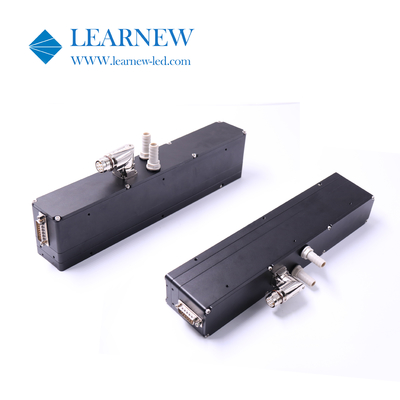

UVA Systems 1200W Pictures
1200W UV Systems FAQ
Q1: Do you supply OEM,ODM service?
A1: YES,absolutely it can be realized.
Q2: All the pictures are real photo?
A2: Yes, the pictures of all products on this page are 100% real shoot by us.
Q3: How can I get a quotation from you?
A3: Please kindly leave us messages about your needs,including products and quantity,our professional team will reply you very soon (mostly within few hours).
Q4: Is there any discount for bulk order?
A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price.
Q5: Do you support drop shipping and how much is the shippping cost?
A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the goods according the address you have left. The shipping cost are based on your order's volume and weight, and it can be calculated.
Q6: How to place an order?
A6: If you want to place an order, Please feel free to send us an inquiry email or contact us by trademanager online, we will reply you within 24hours(working day).
Q7: What payment terms are available?
A7: T/T,PayPal, Western Union and Secure Payment.
Q8: What about the lead time?
A8: It depends on the order quantity. In general, lead time is about 3-75working days. For samples, the delivery could be as fast as same day.
