Product Details:
|
| POWER: | 600W/1200W | Dominant Wavelength: | 395nm |
|---|---|---|---|
| Optical Intensity: | >12w/cm2 | Recommend Radiation Distance: | 3-10mm |
| Control Method: | Switching Signal Dimming 0-1200W | Cooling Method: | Water Cooling |
| Signal Port Voltage: | 0-12V | VF: | AC220V |
| VIEW ANGLE: | 120° | CHIPS: | High Power SMD Or COB |
600W 1200W UVA Systems specifications
| UV-A | POWER | Dominant Wavelength | Optical Intensity | Recommend Radiation distance | Control method | Cooling method | Signal Port Voltage | VF | Power adjustment | DIMENSION | Lighting Area | VIEW ANGLE |
| LN-CP-300 | 600w(Max) | 395nm | >10w/cm2 | 3-10mm | Switching signal Dimming 0-600W |
Water cooling | 0-12V | AC220V | 10-100% | 160mm(L)*48mm (W)*68mm(H) | 150mm*20mm | 120° |
| LN-CP-600 | 1200w(Max) | 395nm | >12w/cm2 | 3-10mm | Switching signal Dimming 0-1200W |
Water cooling | 0-12V | AC220V | 10-100% | 310mm(L)*48mm (W)*68mm(H) | 300mm*20mm | 120° |
UVA Systems Advantages
1,Long life span
2,low thermal resistance
3,High effiency 45%-55%
4,Ingorganic encapsulation
5,High density and intensity
6,Screw free assemble for high power curing use
7,Multi wavelength 365nm/385nm/395nm/405nm/420nm in one design
8,Optical optimal with special view angle in 30DEG, 60DEG or 120DEG
UVA LED Systems Application
1,UV curing
2,LED growing market
3,Offset printer
4,3D printer
5,Exposure machines
6,Inkjet printer
7,High intensity curing Market like 3KW,7kW,15KW...

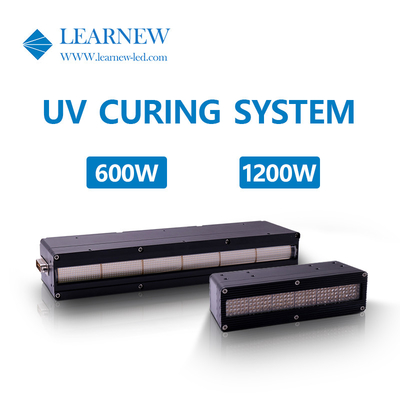

UVA Systems 600W 1200W Pictures
Advantages of UV Curing Systems
Fast curing: The UV curing system can complete the curing process in seconds, greatly improving production efficiency.
Energy saving and environmental protection: The UV curing system does not require heating and does not produce volatile organic compounds, which can save energy and reduce environmental pollution.
High quality: The UV curing system can cure the coating or ink evenly, with smooth surface, high hardness, strong adhesion and bright color.
Versatility: UV curing systems are suitable for different materials such as wood, metal, plastic, paper, etc.
Time-saving and labor-saving: The UV curing system is easy to operate, without waiting time, high production efficiency, and saves a lot of time and labor for manual operations.
uv curing system FAQ
Q1: Do you supply OEM,ODM service?
A1: YES,absolutely it can be realized.
Q2: All the pictures are real photo?
A2: Yes, the pictures of all products on this page are 100% real shoot by us.
Q3: How can I get a quotation from you?
A3: Please kindly leave us messages about your needs,including products and quantity,our professional team will reply you very soon (mostly within few hours).
Q4: Is there any discount for bulk order?
A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price.
Q5: Do you support drop shipping and how much is the shippping cost?
A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the goods according the address you have left. The shipping cost are based on your order's volume and weight, and it can be calculated.
Q6: How to place an order?
A6: If you want to place an order, Please feel free to send us an inquiry email or contact us by trademanager online, we will reply you within 24hours(working day).
Q7: What payment terms are available?
A7: T/T,PayPal, Western Union and Secure Payment.
Q8: What about the lead time?
A8: It depends on the order quantity. In general, lead time is about 3-75working days. For samples, the delivery could be as fast as same day.
