Learnew Opto best quality UVA system Super Power 1200W 395nm AC220V 120DEG UV LED chips for UV Curing

Learnew Opto best quality UVA system Super Power 1200W 395nm AC220V 120DEG UV LED chips for UV Curing
Learnew Opto best quality UVA system Super Power 1200W 395nm AC220V 120DEG UV LED chips for UV Curing
Learnew Opto best quality UVA system Super Power 1200W 395nm AC220V 120DEG UV LED chips for UV Curing Learnew Opto best quality UVA system Super Power 1200W 395nm AC220V 120DEG UV LED chips for UV Curing Learnew Opto best quality UVA system Super Power 1200W 395nm AC220V 120DEG UV LED chips for UV Curing Learnew Opto best quality UVA system Super Power 1200W 395nm AC220V 120DEG UV LED chips for UV Curing Learnew Opto best quality UVA system Super Power 1200W 395nm AC220V 120DEG UV LED chips for UV Curing Learnew Opto best quality UVA system Super Power 1200W 395nm AC220V 120DEG UV LED chips for UV Curing

Large Image :  Learnew Opto best quality UVA system Super Power 1200W 395nm AC220V 120DEG UV LED chips for UV Curing

Product Details:
Place of Origin: China
Brand Name: Learnew Opto
Certification: RoHS
Model Number: LN-CP-600
Payment & Shipping Terms:
Price: Negotiable
Packaging Details: Anti-static Blister Packing
Delivery Time: 15-45 working days
Payment Terms: L/C, T/T
Supply Ability: 99999pcs

Learnew Opto best quality UVA system Super Power 1200W 395nm AC220V 120DEG UV LED chips for UV Curing

Description
POWER: 600W Dominant Wavelength: 395nm
Optical Intensity: >12w/cm2 Recommend Radiation Distance: 3-10mm
Control Method: Switching Signal Dimming 0-1200W Cooling Method: Water Cooling
Signal Port Voltage: 0-12V VF: AC220V
Power Adjustment: 10-100% DIMENSION: 310mm(L)*48mm (W)*68mm(H)
Lighting Area: 300mm*20mm VIEW ANGLE: 120°

Learnew Opto best quality UVA system Super Power 1200W 395nm AC220V 120DEG UV LED chips for UV Curing

1200W UVA Systems specifications

UV-A POWER Dominant Wavelength Optical Intensity Recommend Radiation distance Control method Cooling method Signal Port Voltage VF Power adjustment DIMENSION Lighting Area VIEW ANGLE LENS CHIPS
LN-CP-300 600w(Max) 395nm >10w/cm2 3-10mm Switching signal
Dimming 0-600W
Water cooling 0-12V AC220V 10-100% 160mm(L)*48mm (W)*68mm(H) 150mm*20mm 120° QUARTZ GLASS LENS High power SMD or COB
LN-CP-600 1200w(Max) 395nm >12w/cm2 3-10mm Switching signal
Dimming 0-1200W
Water cooling 0-12V AC220V 10-100% 310mm(L)*48mm (W)*68mm(H) 300mm*20mm 120° QUARTZ GLASS LENS High power SMD or COB






UVA Systems Advantages



1,Long life span

2,low thermal resistance

3,High effiency 45%-55%
4,Ingorganic encapsulation
5,High density and intensity
6,Screw free assemble for high power curing use
7,Multi wavelength 365nm/385nm/395nm/405nm/420nm in one design

8,Optical optimal with special view angle in 30DEG, 60DEG or 120DEG





UVA LED Systems Application



1,UV curing
2,LED growing market
3,Offset printer
4,3D printer
5,Exposure machines
6,Inkjet printer
7,High intensity curing Market like 3KW,7kW,15KW...





UVA Systems 1200W Pictures

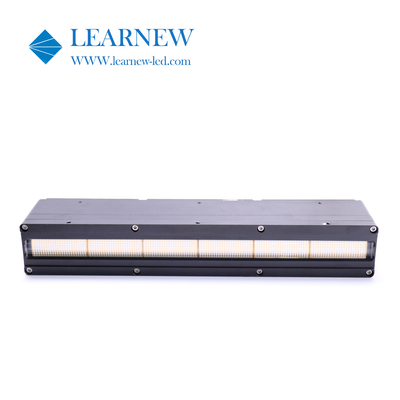

Learnew Opto best quality UVA system Super Power 1200W 395nm AC220V 120DEG UV LED chips for UV Curing 0

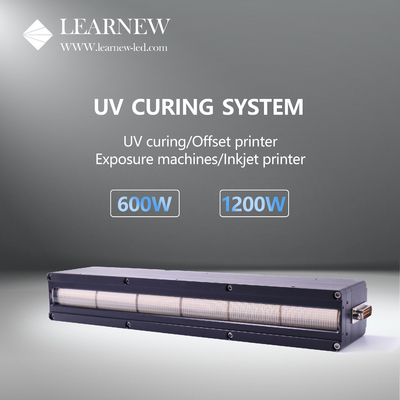

Learnew Opto best quality UVA system Super Power 1200W 395nm AC220V 120DEG UV LED chips for UV Curing 1

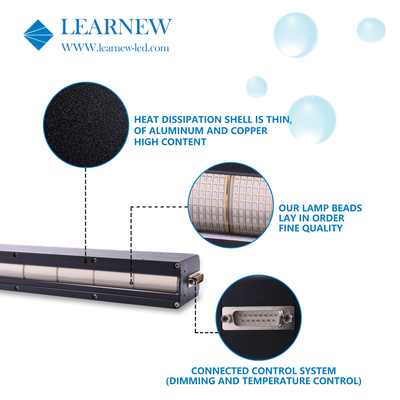

Learnew Opto best quality UVA system Super Power 1200W 395nm AC220V 120DEG UV LED chips for UV Curing 2

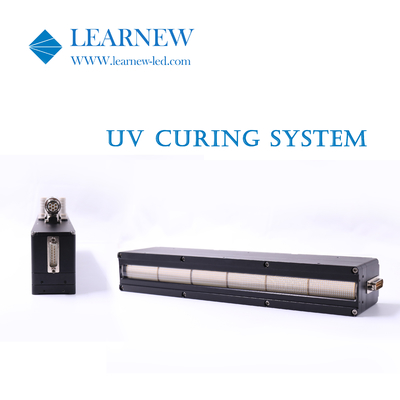

Learnew Opto best quality UVA system Super Power 1200W 395nm AC220V 120DEG UV LED chips for UV Curing 3

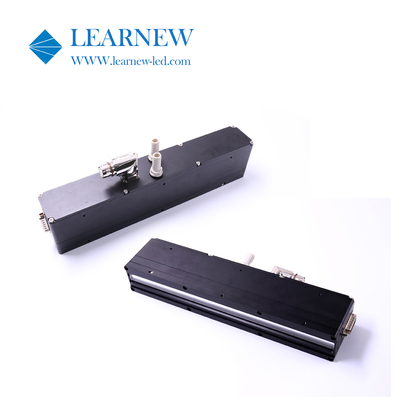

Learnew Opto best quality UVA system Super Power 1200W 395nm AC220V 120DEG UV LED chips for UV Curing 4



1200W UV Systems FAQ



Q1: Do you supply OEM,ODM service?

A1: YES,absolutely it can be realized.

Q2: All the pictures are real photo?

A2: Yes, the pictures of all products on this page are 100% real shoot by us.

Q3: How can I get a quotation from you?

A3: Please kindly leave us messages about your needs,including products and quantity,our professional team will reply you very soon (mostly within few hours).

Q4: Is there any discount for bulk order?

A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price.

Q5: Do you support drop shipping and how much is the shippping cost?

A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the goods according the address you have left. The shipping cost are based on your order's volume and weight, and it can be calculated.

Q6: How to place an order?

A6: If you want to place an order, Please feel free to send us an inquiry email or contact us by trademanager online, we will reply you within 24hours(working day).

Q7: What payment terms are available?

A7: T/T,PayPal, Western Union and Secure Payment.

Q8: What about the lead time?

A8: It depends on the order quantity. In general, lead time is about 3-75working days. For samples, the delivery could be as fast as same day.
