smd led chip 4046 55w 80w 100w Flip Chip COB LED , 2700-6500K COB LED Chips

smd led chip 4046 55w 80w 100w Flip Chip COB LED , 2700-6500K COB LED Chips
smd led chip 4046 55w 80w 100w Flip Chip COB LED , 2700-6500K COB LED Chips
smd led chip 4046 55w 80w 100w Flip Chip COB LED , 2700-6500K COB LED Chips smd led chip 4046 55w 80w 100w Flip Chip COB LED , 2700-6500K COB LED Chips smd led chip 4046 55w 80w 100w Flip Chip COB LED , 2700-6500K COB LED Chips smd led chip 4046 55w 80w 100w Flip Chip COB LED , 2700-6500K COB LED Chips smd led chip 4046 55w 80w 100w Flip Chip COB LED , 2700-6500K COB LED Chips smd led chip 4046 55w 80w 100w Flip Chip COB LED , 2700-6500K COB LED Chips smd led chip 4046 55w 80w 100w Flip Chip COB LED , 2700-6500K COB LED Chips smd led chip 4046 55w 80w 100w Flip Chip COB LED , 2700-6500K COB LED Chips

Large Image :  smd led chip 4046 55w 80w 100w Flip Chip COB LED , 2700-6500K COB LED Chips

Product Details:
Place of Origin: China
Brand Name: Learnew Opto
Certification: CE/ROHS
Model Number: 4046 SERIES
Payment & Shipping Terms:
Minimum Order Quantity: 5000-10000
Price: Negotiable
Packaging Details: Choose packaging materials with better cushioning and protection effect. For lamps with higher value or lamps with more glass surface, we use the outer box and add a wooden box or wooden frame to the packaging.
Delivery Time: 7-15 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 500000
Contact Now

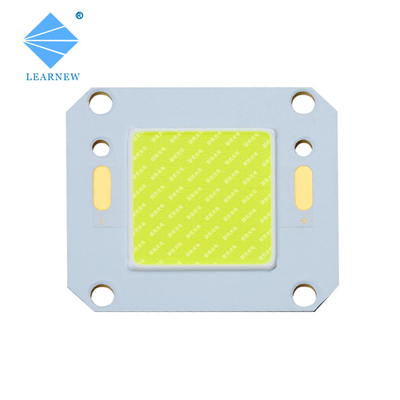

smd led chip 4046 55w 80w 100w Flip Chip COB LED , 2700-6500K COB LED Chips

Description
FLIP CHIP: 4046 SERIES POWER: 40W-110W
CCT: 2700-6500K LM/W: 90-110
VIEW ANGLE: 120° CRI: 80

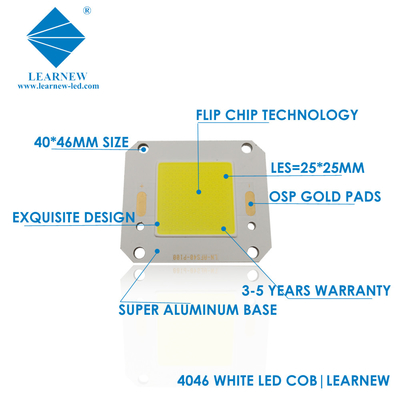

WHOLE SIZE: 40X46MM SUBSTRATE: Aluminum
Highlight:

Flip Chip COB LED 4046

,

55w Flip Chip COB LED

,

Aluminum Substrate COB LED Chips

Learnew Oem Odm Factory COB Chips 4046 55w 80w 100w 2700-6500K  for Disinfection LED Lamp



4046 led chip Product specification



FLIP CHIP POWER CCT LM/W IF VF Circuit Chips WHOLE SIZE EMIT SIZE VIEW ANGLE CRI SUBSTRATE
4046 SERIES 45W-55W 2700-6500K 90-110 1350-1500mA 30-33V 10S10P F1022 40X46MM 25MM 120° 70/80 Aluminum
80W-110W 2700-6500K 90-110 2300-3200mA 30-33V 10S21P F1022 40X46MM 25MM







LED COB Chips Design Advantage

  • High density
  • High power series
  • SDCM<5
  • CRI available in 80/90/95+
  • Flip chip technology
  • Good stability
  • Cost performance

LED COB Chips Application

  • LED floodlight
  • LED streetlight
  • LED high bay light
  • LED wall washer
  • LED landscape lamp
  • LED explosion-proof light

smd led chip 4046 55w 80w 100w Flip Chip COB LED , 2700-6500K COB LED Chips 0

smd led chip 4046 55w 80w 100w Flip Chip COB LED , 2700-6500K COB LED Chips 1

smd led chip 4046 55w 80w 100w Flip Chip COB LED , 2700-6500K COB LED Chips 2

smd led chip 4046 55w 80w 100w Flip Chip COB LED , 2700-6500K COB LED Chips 3

smd led chip 4046 55w 80w 100w Flip Chip COB LED , 2700-6500K COB LED Chips 4





2828 LED CHIP FAQ

Q1: Do you supply OEM,ODM service?
A1: YES,absolutely it can be realized.Learnew focus on OEM & ODM service more than 7 years.
Q2:All the pictures are real photo?

A2: Yes, the pictures of all products on this page are 100% real shoot by us.
Q3:How can I get a quotation from you?
A3: Please kindly leave us messages about your needs,including products parameters,application, you contact way and quantity,our professional team will reply you in one hour here.
Q4: Is there any discount for bulk order?
A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price. Be our fans on alibaba or add learnew opto to “my favorite stores”, you will always get our discount and coupon information at the first time.
Q5: Do you support drop shipping and how much is the shipping cost?
A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the goods according the address you have left. The shipping cost are based on your order's volume and weight, you can check on alibaba or ask our team.
Q6: How to place an order?
A6: You can check the shipping cost and discount information online, and place order directly on Alibaba. Or you can contact us for the order details, we will reply you in mins.
Q7: What payment terms are available?
A7: T/T,PayPal, Western Union and Secure Payment.
Q8: What about the lead time?
A8: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples in standard, the delivery could be 3 days.ng Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
