Pure Copper Module High Power LED COB 120W 4056 RGBW 1050mA 120DEG CRI 90

Certification
China Shenzhen Learnew Optoelectronics Technology Co., Ltd. certification
China Shenzhen Learnew Optoelectronics Technology Co., Ltd. certification
Customer Reviews
Learnew delivered what we asked for,quickly and well made. Happy to work with Learnnew, he can tell me accurately about the product and save me a lot of time, they are very professional

—— Ashraf Trading

I'm Online Chat Now

Pure Copper Module High Power LED COB 120W 4056 RGBW 1050mA 120DEG CRI 90

Pure Copper Module High Power LED COB 120W 4056 RGBW 1050mA 120DEG CRI 90
Pure Copper Module High Power LED COB 120W 4056 RGBW 1050mA 120DEG CRI 90
Pure Copper Module High Power LED COB 120W 4056 RGBW 1050mA 120DEG CRI 90 Pure Copper Module High Power LED COB 120W 4056 RGBW 1050mA 120DEG CRI 90

Large Image :  Pure Copper Module High Power LED COB 120W 4056 RGBW 1050mA 120DEG CRI 90

Product Details:
Place of Origin: China
Brand Name: Learnew
Certification: CE;ROHS
Model Number: LN-CTS40RGBW-P120-25
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: Negotiable
Packaging Details: Samples packing method can be in a Antistatic bag, Anti-static plate in deal with empty space, or Circle up with foam. Order packing method will be Anti-static plate in deal with empty space.
Delivery Time: 7-31
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 100000PCS/Month

Pure Copper Module High Power LED COB 120W 4056 RGBW 1050mA 120DEG CRI 90

Description
Model: RGBW Power: 120W
IF: 1050mA Whole Size: 40*56MM
LENS: 25X25MM View Angle: 120°
High Light:

Pure Copper High Power LED COB

,

RGBW High Power LED COB

,

4056 RGBW LED COB

120W 4056RGBW 1050mA 120DEG CRI90+ Pure Copper LED Module



Product Specifications

Model LN-CTS40RGBW-P120-25
Whole Size 40*56MM
LENS 25X25MM
CCT

R=620-630nm
G=520-530nm
B=450-470nm

W=3000K/6000K

LM/W R=30-40lm/w
G=70-90lm/w
B=20-30lm/w
W=100-120lm/w
IF 1050mA
VF R=20-24V
G=30-34V
B=30-34V W=30-34V
Circuit Red=10S3P
Green=10S3P
Blue=10S3P
White=10S3P
View Angle 120°
Power 120W
CRI >90
Substrate PURE COPPER

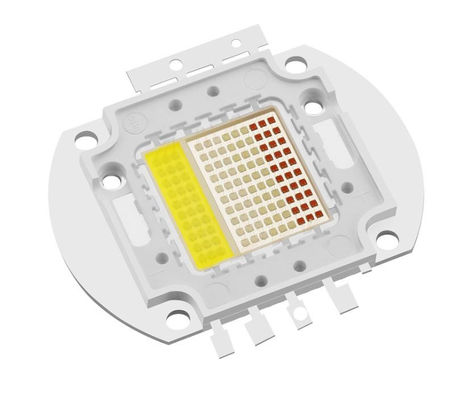

Learnew Opto new product "FLIP CHIP" & "BICOLOR-STARRY" COB MODEL---LN-CTS40RGBW-P120-25, the power is 120W, the current is 1050mA, and the voltage R=20-24V, G=30-34V, B=30-34V, W=30-34V. This moduel whole size is 40*56MM, and the LENS is about 25X25MM, with 120° view angle. The CRI we can do 90+ according to your request. We use pure copper substrate to make this product to ensure our moduel with good quality.



Pure Copper Module High Power LED COB 120W 4056 RGBW 1050mA 120DEG CRI 90 0

FAQ

Q1: Do you supply OEM,ODM service?
A1: YES,absolutely it can be realized.Learnew focus on OEM & ODM service more than 7 years.
Q2: All the pictures are real photo?
A2: Yes, the pictures of all products on this page are 100% real shoot by us.
Q3: How can I get a quotation from you?
A3: Please kindly leave us messages about your needs,including products parameters, application, you contact way and quantity,our professional team will reply you in one hour here.
Q4: Is there any discount for bulk order?
A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price. Be our fans on alibaba or add learnew opto to “my favorite stores”, you will always get our discount and coupon information at the first time.
Q5: Do you support drop shipping and how much is the shipping cost?
A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the goods according the address you have left. The shipping cost are based on your order's volume and weight, you can check on alibaba or ask our team.
Q6: How to place an order?
A6: You can check the shipping cost and discount information online, and place order directly on Alibaba. Or you can contact us for the order details, we will reply you in mins.
Q7: What payment terms are available?
A7: T/T,PayPal, Western Union and Secure Payment.
Q8: What about the lead time?
A8: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples in standard, the delivery could be 3 days.
