Product Details:
|
| Power: | 40W-60W/80W-120W/150W-200W | CCT: | 2700-6500K |
|---|---|---|---|
| Whole Size: | 40X46MM | Emit Size: | 25*25MM |
| LM/W: | 110-130/120-140 | Substrate: | Super-Aluminum |
| High Light: | 25x25MM CRI LED COB Chip,40X46MM Cob Led Chip,wall washer LED COB Chip |
||

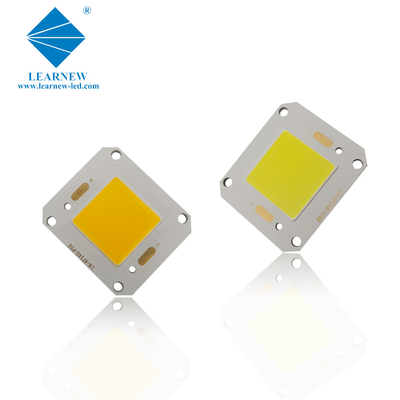

Learnew 40X46MM and 25*25MM Emit Size 120° 70/80/90/95 CRI LED COB Chip
| Power | 40W-60W/80W-120W/150W-200W |
| LM/W | 110-130/120-140 |
| IF | 1250-1800mA/2500-4000mA/3500-4500mA |
| VF | 30-33V/42-48V |
| Circuit | 10S10P/10S21P/14S30P |
| CCT | 2700-6500K |
| CRI | 70/80/90/95 |
| Whole Size |
|
| Emit Size | 25*25MM |
| View Angle | 120° |
| Substrate | Super-Aluminum |

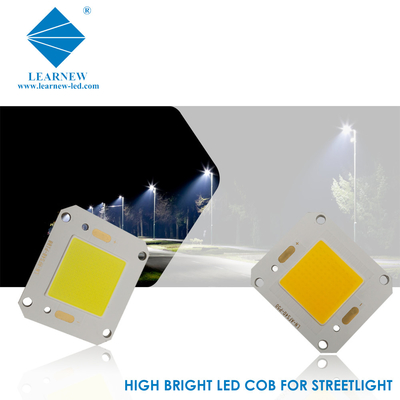

Hot-Selling 4046 Series with High Power, High density, and commonly used in LED floodlight and LED streetlight:
Design Advantage:
1, High density
2, High power series
3, Low thermal resistance
4, SDCM<5
5, CRI available in 80/90/95+
6, Flip chip technology
7, Good stability
Application:
1, LED floodlight
2, LED streetlight
3, LED high bay light
4, LED wall washer
5, LED landscape lamp
6, LED explosion-proof light
FAQ
Q1: Do you supply OEM,ODM service? A1: YES,absolutely it can be realized.Learnew focus on OEM & ODM service more than 7 years.
Q2:All the pictures are real photo?
A2: Yes, the pictures of all products on this page are 100% real shoot by us.
Q3: How can I get a quotation from you?
A3: Please kindly leave us messages about your needs,including products parameters, application, you contact way and quantity,our
professional team will reply you in one hour here.
Q4: Is there any discount for bulk order?
A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price. Be our fans on alibaba or add
learnew opto to “my favorite stores”, you will always get our discount and coupon information at the first time.
Q5: Do you support drop shipping and how much is the shipping cost?
A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the
goods according the address you have left. The shipping cost are based on your order's volume and
weight, you can check on alibaba or ask our team.
Q6: How to place an order?
A6: You can check the shipping cost and discount information online, and place order directly on Alibaba. Or you can contact us
for the order details, we will reply you in mins.
Q7: What payment terms are available?
A7: T/T,PayPal, Western Union and Secure Payment.
Q8: What about the lead time?
A8: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples in standard, the delivery
could be 3 days.
