RGB RGBW High Power SMD LED CHIP 3W 4W 5W 18W 3535 5050 Ceramic SUBSTRATE For Stage Light

Certification
China Shenzhen Learnew Optoelectronics Technology Co., Ltd. certification
China Shenzhen Learnew Optoelectronics Technology Co., Ltd. certification
I'm Online Chat Now

RGB RGBW High Power SMD LED CHIP 3W 4W 5W 18W 3535 5050 Ceramic SUBSTRATE For Stage Light

RGB RGBW High Power SMD LED CHIP 3W 4W 5W 18W 3535 5050 Ceramic SUBSTRATE For Stage Light
RGB RGBW High Power SMD LED CHIP 3W 4W 5W 18W 3535 5050 Ceramic SUBSTRATE For Stage Light
RGB RGBW High Power SMD LED CHIP 3W 4W 5W 18W 3535 5050 Ceramic SUBSTRATE For Stage Light RGB RGBW High Power SMD LED CHIP 3W 4W 5W 18W 3535 5050 Ceramic SUBSTRATE For Stage Light RGB RGBW High Power SMD LED CHIP 3W 4W 5W 18W 3535 5050 Ceramic SUBSTRATE For Stage Light RGB RGBW High Power SMD LED CHIP 3W 4W 5W 18W 3535 5050 Ceramic SUBSTRATE For Stage Light RGB RGBW High Power SMD LED CHIP 3W 4W 5W 18W 3535 5050 Ceramic SUBSTRATE For Stage Light

Large Image :  RGB RGBW High Power SMD LED CHIP 3W 4W 5W 18W 3535 5050 Ceramic SUBSTRATE For Stage Light

Product Details:
Place of Origin: China
Brand Name: Learnew
Model Number: LN-SMD3535RGB-P3-LP
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pieces
Price: USD$0.45/Piece
Packaging Details: We use a layer of waterproof material attached to the packaging box to prevent damage to the product
Delivery Time: 15-30 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 5000000Pieces/month

RGB RGBW High Power SMD LED CHIP 3W 4W 5W 18W 3535 5050 Ceramic SUBSTRATE For Stage Light

Description
Product Type: SMD LED CHIP POWER: 1-18W
Current: 350-3000mA LUMINUOUS EFF: R=50-80lm G=80-120lm B=20-40lm

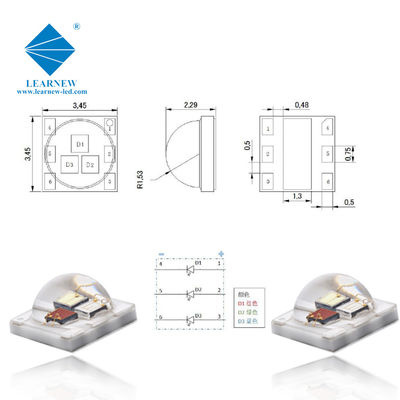

Voltage: R=2.0-2.4V G=3.0-3.4V B=3.0-3.4V Whole Size: 3.5*3.5MM
LENS: R1.5MM SUBSTRATE: Ceramic
VIEW ANGLE: 120° Chips: SANAN
High Light:

RGBW SMD Stage Light CHIP

,

Ceramic SUBSTRATE SMD LED Chips

,

Stage Light 5050 SMD LED Chips

RGB RGBW High Power SMD LED CHIP 3W 4W 5W 18W 3535 5050 Ceramic SUBSTRATE For Stage Light



Specification
Product Type
High Power SMD Led Chip
Color Temperature(CCT)
R=620-630nm G=520-530nm B=460-470nm
Current
3.0-3.4V
Power
3W
10W
Luminous flux
R=50-80lm G=80-120lm B=20-40lm
Viewing Angle(°)
120
Color Rendering Index
70 80 90
WHOLE SIZE
3.5*3.5MM
20*20MM
40*56MM
SUBSTRATE
Ceramic
PURE COPPER


Design Advantage
1,Ceramic leadframe.
2,High ESD pass
3,Standard A Class vertical emit chips.
4,Cost performance.
5,Gold wire bond.
6,Easy reflow sodering.

APPLICATION
1,LED stage light
2,LED landscape lighting
3,City light
4,Smart home light

RGB RGBW High Power SMD LED CHIP 3W 4W 5W 18W 3535 5050 Ceramic SUBSTRATE For Stage Light 0RGB RGBW High Power SMD LED CHIP 3W 4W 5W 18W 3535 5050 Ceramic SUBSTRATE For Stage Light 1

RGB RGBW High Power SMD LED CHIP 3W 4W 5W 18W 3535 5050 Ceramic SUBSTRATE For Stage Light 2

RGB RGBW High Power SMD LED CHIP 3W 4W 5W 18W 3535 5050 Ceramic SUBSTRATE For Stage Light 3

RGB RGBW High Power SMD LED CHIP 3W 4W 5W 18W 3535 5050 Ceramic SUBSTRATE For Stage Light 4













Competitive Advantages of our LEDs:

  • Good quality guarantee, 50000 hours
  • Lifespan, 2-5 years warranty.
  • Professional engineers and experienced workers.
  • Short delivery time, normally only 1-7 working days.
  • Customized specifications available in CCT, CRI, Lumen, VF, Color , etc.
  • Various module type, such as SMD LED, high power LED , integrated LED, COB LED, UVABC diode etc.



Our Services:



  • Reply your inquiry in 24 working hours
  • Well-trained and experienced staffs to answer all your inquiries in fluent English.
  • Strict quality control procedures before shipment.
  • Customized design is available.OME and ODM are welcomed
  • Delivery the goods to our customer all over the world with speed and precision.
