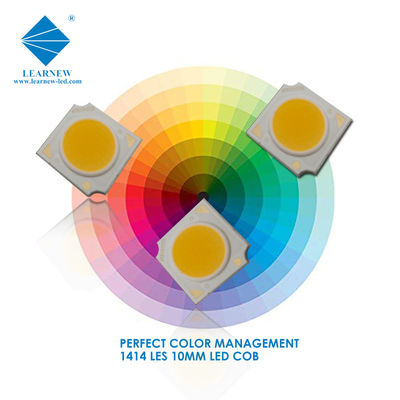

3W 2700-6000K High Cri 80 Flip Chip COB 1414 Series Mirror Alu EPISTAR

Certification
China Shenzhen Learnew Optoelectronics Technology Co., Ltd. certification
China Shenzhen Learnew Optoelectronics Technology Co., Ltd. certification
Customer Reviews
August 25, 2023, I purchased UVA LED chips from Learnew. Learnew delivered the custom UVA chips we requested quickly and with excellent workmanship. It was a pleasure to work with Learnew. He was able to tell me exactly which product would work with my curing printer, saving me a lot of time. They are very professional.

—— Ashraf Trading

October 13, 2023,I received a customized 3535 COB LED Chip .Their attention to detail, timely responses, and on-time delivery have exceeded my expectation.The sample I received is what I need, very bright, I will choose LEARNEW for a long time in the future

—— Hector Bustillo

March 2024,Just received the product and have tried it,The design of these Hight LED chips is outstanding. They are compact, easy to install, and provide excellent illumination. I am extremely satisfied with their performance!

—— Fabio Antista

I am thoroughly impressed with the functionality of these UV LED chips. They offer reliable UV output, high efficiency, and a long lifespan. A great investment for any UV application!

—— Ali Muhammad

I'm Online Chat Now

3W 2700-6000K High Cri 80 Flip Chip COB 1414 Series Mirror Alu EPISTAR

3W 2700-6000K High Cri 80 Flip Chip COB 1414 Series Mirror Alu EPISTAR
3W 2700-6000K High Cri 80 Flip Chip COB 1414 Series Mirror Alu EPISTAR 3W 2700-6000K High Cri 80 Flip Chip COB 1414 Series Mirror Alu EPISTAR 3W 2700-6000K High Cri 80 Flip Chip COB 1414 Series Mirror Alu EPISTAR 3W 2700-6000K High Cri 80 Flip Chip COB 1414 Series Mirror Alu EPISTAR

Large Image :  3W 2700-6000K High Cri 80 Flip Chip COB 1414 Series Mirror Alu EPISTAR

Product Details:
Place of Origin: CHINA
Brand Name: LERANEW
Certification: CE RoHS SGS
Model Number: LN-AFS14XW-P3-11
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable price
Packaging Details: Anti-static Blister packing
Delivery Time: 7-12 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200,000PCS per month

3W 2700-6000K High Cri 80 Flip Chip COB 1414 Series Mirror Alu EPISTAR

Description
Color: 2700-6000K Size: 14*14mm
LES: R11mm Efficiency: 120-140lm/w/110-120lm/w/120-140lm/w/110-120lm/w
Circuit: 3S2P/4S2P View Angle: 120DEG
High Light:

EPISTAR Flip Chip COB

,

Flip Chip COB 6000K

,

Flip Chip COB LED 1414 Series

3W 2700-6000K high cri 80 flip chip cob led 1414 series Mirror alu EPISTAR chip



Product Specifications

Models LN-AFS14XW-P3-11 LN-AFS14XW-P3-11 LN-AFS14XW-P3-11 LN-AFS14XW-P3-11
Color temperature

WW:Warm white=2700-3000K

NW:Neutral white=4000-4500K

PW:Pure white=6000-6500K

WW:Warm white=2800-3200K

NW:Neutral white=4000-4500K

PW:Pure white=6000-7000K

WW:Warm white=2800-3200K

NW:Neutral white=4000-4500K

PW:Pure white=6000-7000K

WW:Warm white=2800-3200K

NW:Neutral white=4000-4500K

PW:Pure white=6000-7000K

Luminous efficiency 120-140lm/w 110-120lm/w 120-140lm/w 110-120lm/w
Working voltage 9V 9V 12V 12V
View angle 120DEG 120DEG 120DEG 120DEG
CRI >80 >80 >80 >80
Working current 300mA 300mA 300mA 300mA



































Design Advantage :



1,No glare light

2,Color consistance

3,Low life decay

4,Low thermal resistance

5,High CRI 80/90/95+



Application:

1,LED spotlight

2,LED car light

3,LED downlight

4,LED tracking light

5,LED underwater lamp

6,LED bulb

7.,LED Bar light

8,LED ceiling light

3W 2700-6000K High Cri 80 Flip Chip COB 1414 Series Mirror Alu EPISTAR 0

3W 2700-6000K High Cri 80 Flip Chip COB 1414 Series Mirror Alu EPISTAR 13W 2700-6000K High Cri 80 Flip Chip COB 1414 Series Mirror Alu EPISTAR 2









FAQ


Q1: Do you supply OEM,ODM service?
A1: YES,absolutely it can be realized.Learnew focus on OEM & ODM service more than 7 years.
Q2: All the pictures are real photo?
A2: Yes, the pictures of all products on this page are 100% real shoot by us.
Q3: How can I get a quotation from you?
A3: Please kindly leave us messages about your needs,including products parameters, application, you contact way and quantity,our professional team will reply you in one hour here.
Q4: Is there any discount for bulk order?
A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price. Be our fans on alibaba or add learnew opto to “my favorite stores”, you will always get our discount and coupon information at the first time.
Q5: Do you support drop shipping and how much is the shipping cost?
A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the goods according the address you have left. The shipping cost are based on your order's volume and weight, you can check on alibaba or ask our team.
Q6: How to place an order?
A6: You can check the shipping cost and discount information online, and place order directly on Alibaba. Or you can contact us for the order details, we will reply you in mins.
Q7: What payment terms are available?
A7: T/T,PayPal, Western Union and Secure Payment.
Q8: What about the lead time?
A8: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples in standard, the delivery could be 3 days.
