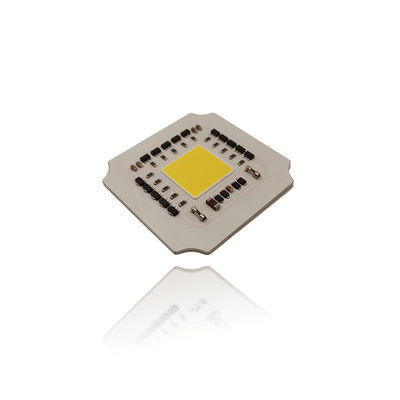

CE RoHS 780nm AC277V AC COB Module 120DEG 100W COB LED

Certification
China Shenzhen Learnew Optoelectronics Technology Co., Ltd. certification
China Shenzhen Learnew Optoelectronics Technology Co., Ltd. certification
Customer Reviews
August 25, 2023, I purchased UVA LED chips from Learnew. Learnew delivered the custom UVA chips we requested quickly and with excellent workmanship. It was a pleasure to work with Learnew. He was able to tell me exactly which product would work with my curing printer, saving me a lot of time. They are very professional.

—— Ashraf Trading

October 13, 2023,I received a customized 3535 COB LED Chip .Their attention to detail, timely responses, and on-time delivery have exceeded my expectation.The sample I received is what I need, very bright, I will choose LEARNEW for a long time in the future

—— Hector Bustillo

March 2024,Just received the product and have tried it,The design of these Hight LED chips is outstanding. They are compact, easy to install, and provide excellent illumination. I am extremely satisfied with their performance!

—— Fabio Antista

I am thoroughly impressed with the functionality of these UV LED chips. They offer reliable UV output, high efficiency, and a long lifespan. A great investment for any UV application!

—— Ali Muhammad

I'm Online Chat Now

CE RoHS 780nm AC277V AC COB Module 120DEG 100W COB LED

CE RoHS 780nm AC277V AC COB Module 120DEG 100W COB LED
CE RoHS 780nm AC277V AC COB Module 120DEG 100W COB LED
CE RoHS 780nm AC277V AC COB Module 120DEG 100W COB LED CE RoHS 780nm AC277V AC COB Module 120DEG 100W COB LED CE RoHS 780nm AC277V AC COB Module 120DEG 100W COB LED

Large Image :  CE RoHS 780nm AC277V AC COB Module 120DEG 100W COB LED

Product Details:
Place of Origin: CHINA
Brand Name: LERANEW
Certification: CE RoHS SGS
Model Number: LN-AFS70XW-P100AC-25/LN-AFS70FS-P100AC-25
Payment & Shipping Terms:
Minimum Order Quantity: 5000-10000
Price: Negotiable price
Packaging Details: Anti-static Blister packing
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200,000PCS per month

CE RoHS 780nm AC277V AC COB Module 120DEG 100W COB LED

Description
Color: 380-780nm(full Spectrum) Size: 70*70mm
LES: 25*25mm Efficiency: 80-90umol/s
Circuit: 44S4P/102S2P View Angle: 120DEG
Working Voltage: AC277V Packing Technology: Flip Chip
Highlight:

780nm AC277V AC COB Module

,

RoHS 100W COB LED

,

120DEG 100W COB LED

CE RoHS 780nm AC277V AC COB Module 120DEG 100W COB LED 0
Super Aluminum AC LED COB flip chip High efficiency 380-780nm(full spectrum) 100W AC277V 6000K



AC COB Module

High display means high light efficiency:    AC COB Module is widely used in special lighting, high-end commercial lighting, decorative lighting, automobile lighting, street lights and other fields to improve LED color rendering, reduce LED light attenuation, accurately control color temperature, improve light spot.
CE RoHS 780nm AC277V AC COB Module 120DEG 100W COB LED 1

Models LN-AFS70XW-P100AC-25 LN-AFS70FS-P100AC-25
Electronic power 100W 100W
Color temperature

WW:Warm white=2800-3200K
NW:Neutral white=4000-4500K
PW:Pure white=6000-7000K

380-780nm(full spectrum)
Luminous efficiency 110-120lm/w 80-90umol/s
Working voltage AC110V AC277V
Circuit 44S4P 102S2P
Size of COB 70*70mm 70*70mm
LES(Diameter) 25*25mm 25*25mm
















CE RoHS 780nm AC277V AC COB Module 120DEG 100W COB LED 2
Design Advantage :

1, Driver & LED all in one design.
2, Easy and Fast assemble.
3, Fast thermal conductivity.
4, Cost performance.
5, Long lifespan.
6, Super Power design.

CE RoHS 780nm AC277V AC COB Module 120DEG 100W COB LED 3
CE RoHS 780nm AC277V AC COB Module 120DEG 100W COB LED 4
Application:

  • LED outdoor light,
  • LED industry light,
  • LED project lamp,
  • LED floodlight,LED landscape light

CE RoHS 780nm AC277V AC COB Module 120DEG 100W COB LED 5

CE RoHS 780nm AC277V AC COB Module 120DEG 100W COB LED 6
Q1: Do you supply OEM,ODM service?
A1: YES,absolutely it can be realized.

Q2: All the pictures are real photo?
A2: Yes, the pictures of all products on this page are 100% real shoot by us.

Q3: How can I get a quotation from you?
A3: Please kindly leave us messages about your needs,including products and quantity,our professional team will reply you very soon (mostly within few hours).

Q4: Is there any discount for bulk order?
A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price.
