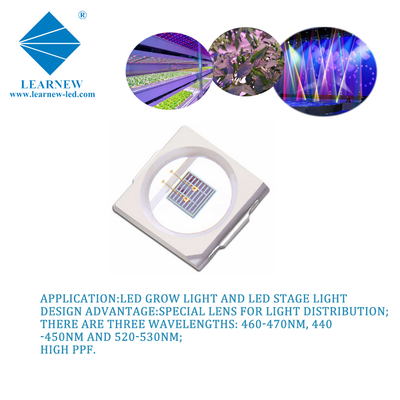

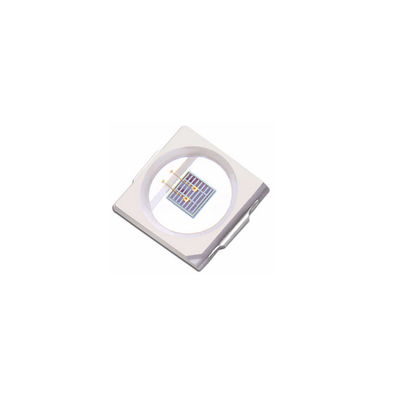

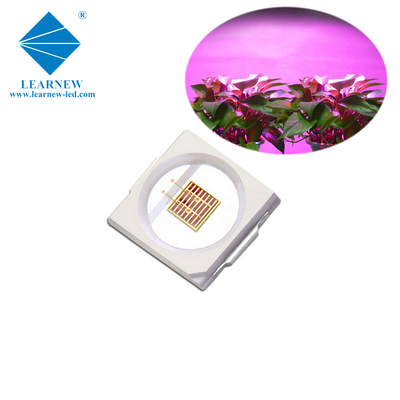

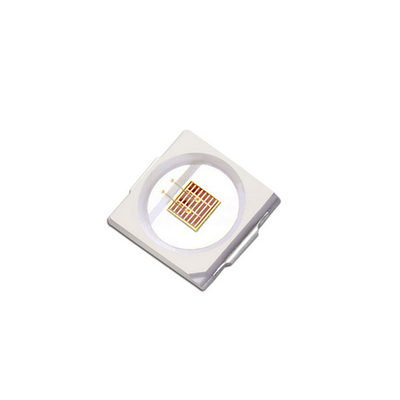

1W SMD 3030 440nm 450nm 460nm 470nm LED Blue Growlights Chip Pure Gold Wire EPILED 35mil Chips 300mA 3.0-3.4V High PPE Diodes

1W SMD 3030 440nm 450nm 460nm 470nm LED Blue Growlights Chip Pure Gold Wire EPILED 35mil Chips 300mA 3.0-3.4V High PPE Diodes
1W SMD 3030 440nm 450nm 460nm 470nm LED Blue Growlights Chip Pure Gold Wire EPILED 35mil Chips 300mA 3.0-3.4V High PPE Diodes 1W SMD 3030 440nm 450nm 460nm 470nm LED Blue Growlights Chip Pure Gold Wire EPILED 35mil Chips 300mA 3.0-3.4V High PPE Diodes 1W SMD 3030 440nm 450nm 460nm 470nm LED Blue Growlights Chip Pure Gold Wire EPILED 35mil Chips 300mA 3.0-3.4V High PPE Diodes 1W SMD 3030 440nm 450nm 460nm 470nm LED Blue Growlights Chip Pure Gold Wire EPILED 35mil Chips 300mA 3.0-3.4V High PPE Diodes 1W SMD 3030 440nm 450nm 460nm 470nm LED Blue Growlights Chip Pure Gold Wire EPILED 35mil Chips 300mA 3.0-3.4V High PPE Diodes 1W SMD 3030 440nm 450nm 460nm 470nm LED Blue Growlights Chip Pure Gold Wire EPILED 35mil Chips 300mA 3.0-3.4V High PPE Diodes

Large Image :  1W SMD 3030 440nm 450nm 460nm 470nm LED Blue Growlights Chip Pure Gold Wire EPILED 35mil Chips 300mA 3.0-3.4V High PPE Diodes

Product Details:
Place of Origin: Guangdong, China
Brand Name: LEARNEW
Payment & Shipping Terms:
Minimum Order Quantity: 10
Contact Now

1W SMD 3030 440nm 450nm 460nm 470nm LED Blue Growlights Chip Pure Gold Wire EPILED 35mil Chips 300mA 3.0-3.4V High PPE Diodes

Description
Color Temperature(CCT): 660nm Input Voltage(V): 3.0-3.4V
Warranty(Year): 2-Year Type: SMD LED
Support Dimmer: Yes Lighting Solutions Service: Lighting And Circuitry Design, LitePro DLX Layout, Auto CAD Layout
Luminous Efficacy(lm/w): 18 Lifespan (hours): 10000
Product Weight（kg）: 0.2 Forward Current: 300mA
Optical Attenuation %: 0.1 Chip Material: INGAN
Emitting Color: Blue Optical Attenuation(%): 0.03
Power: 1W Power Dissipation: 0.2
Viewing Angle(°): 120 Color Temperature: 440-470nm
Operating Temperature(℃): -40 - 60 Storage Temperature(℃): -20 - 110
Product Name: Blue Led Grow Light Smd 3030 Diode WLD: 460-470nm/440-450nm
LUMINUOUS EFF: 20-30LM/10-15lm CHIPS: EPILED
IF: 300mA VF: 3.0-3.4V
CIRCUIT: 1PCS In Series 1PCS In Parallel WHOLE SIZE: 3.0*3.0mm
LENS: Silica Flat Surface SUBSTRATE: PCT

Tag:

PCT Substrate SMD LED Diode,

18lm SMD LED Chips,

660nm LED SMD Diode
