1W SMD 3030 Blue LED Grow Light Chip 440-470nm 300mA 3.0-3.4V

1W SMD 3030 Blue LED Grow Light Chip 440-470nm 300mA 3.0-3.4V
1W SMD 3030 Blue LED Grow Light Chip 440-470nm 300mA 3.0-3.4V 1W SMD 3030 Blue LED Grow Light Chip 440-470nm 300mA 3.0-3.4V 1W SMD 3030 Blue LED Grow Light Chip 440-470nm 300mA 3.0-3.4V 1W SMD 3030 Blue LED Grow Light Chip 440-470nm 300mA 3.0-3.4V 1W SMD 3030 Blue LED Grow Light Chip 440-470nm 300mA 3.0-3.4V 1W SMD 3030 Blue LED Grow Light Chip 440-470nm 300mA 3.0-3.4V

Large Image :  1W SMD 3030 Blue LED Grow Light Chip 440-470nm 300mA 3.0-3.4V

Product Details:
Place of Origin: Guangdong, China
Brand Name: LEARNEW
Payment & Shipping Terms:
Minimum Order Quantity: 10
Contact Now

1W SMD 3030 Blue LED Grow Light Chip 440-470nm 300mA 3.0-3.4V

Description
Input Voltage: 3.0-3.4V Forward Current: 300mA
Power: 1W Power Dissipation: 0.2
Wavelength: 440-470nm Luminous Efficacy: 18 Lm/W
Viewing Angle: 120° Chip Material: INGAN
Operating Temperature: -40 - 60℃ Storage Temperature: -20 - 110℃
Product Weight: 0.2 Kg Optical Attenuation: 0.03%
Lens Material: Silica Flat Surface Substrate Material: PCT
Chip Size: 3.0*3.0mm
Highlight:

1W SMD 3030 blue LED grow light

,

440-470nm LED grow light chip

,

300mA SMD LED chip with warranty

0.5W/1W SMD 3030 Blue LED Grow Light Chip
Key Features
  • High PPE blue diodes (440-470nm wavelength)
  • SMD 3030 package (3.0×3.0mm size)
  • Pure gold wire construction with EPILED chips
  • 300mA forward current, 3.0-3.4V input voltage
  • 120° wide viewing angle with silica flat surface lens
  • Dimmable with 10,000 hour lifespan
  • PCT substrate with INGAN chip material
  • Operating temperature: -40°C to +60°C
Technical Specifications
Attribute Value
Power 0.5W/1W
Forward Current (IF) 300mA
Forward Voltage (VF) 3.0-3.4V
Wavelength (WLD) 440-470nm
Luminous Efficacy 20-30LM (10-15lm for 0.5W)
Viewing Angle 120°
Chip Type EPILED
Substrate Material PCT
Operating Temperature -40°C to +60°C
Lifespan 10,000 hours
Warranty 2 Years

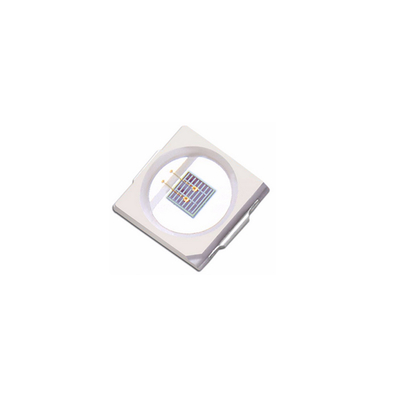

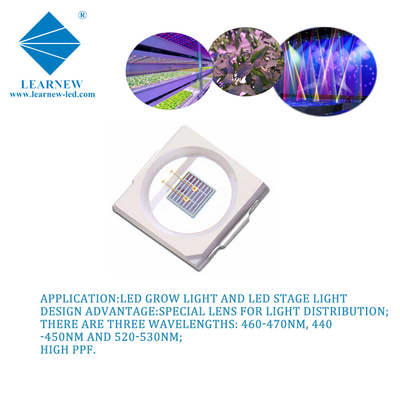

Product Images
1W SMD 3030 Blue LED Grow Light Chip 440-470nm 300mA 3.0-3.4V 0 1W SMD 3030 Blue LED Grow Light Chip 440-470nm 300mA 3.0-3.4V 1 1W SMD 3030 Blue LED Grow Light Chip 440-470nm 300mA 3.0-3.4V 2
Manufacturing & Quality
1W SMD 3030 Blue LED Grow Light Chip 440-470nm 300mA 3.0-3.4V 3 1W SMD 3030 Blue LED Grow Light Chip 440-470nm 300mA 3.0-3.4V 4 1W SMD 3030 Blue LED Grow Light Chip 440-470nm 300mA 3.0-3.4V 5 1W SMD 3030 Blue LED Grow Light Chip 440-470nm 300mA 3.0-3.4V 6
Packaging
1W SMD 3030 Blue LED Grow Light Chip 440-470nm 300mA 3.0-3.4V 7 1W SMD 3030 Blue LED Grow Light Chip 440-470nm 300mA 3.0-3.4V 8
Customization & Services

We provide comprehensive OEM and ODM services including:

  • Custom LED chip specifications
  • Lighting and circuitry design
  • LitePro DLX layout
  • Auto CAD layout services
Frequently Asked Questions
Q: Do you supply OEM/ODM service?
A: Yes, we specialize in OEM & ODM services with over 7 years experience.
Q: Are the product images authentic?
A: All product images are 100% real photos taken by our team.
Q: How can I get a quotation?
A: Please provide your requirements including parameters, application, contact details and quantity. Our team will respond within one hour.
Q: Is there bulk order discount?
A: Yes, we offer wholesale pricing for bulk orders and customized products.
Q: What are your payment terms?
A: We accept T/T, PayPal, Western Union and Secure Payment.
Q: What is your lead time?
A: Standard lead time is 10-15 working days. Samples can be delivered in 3 days.
