5054 SMD LED RGBW Chip 2W 3W 4W 120 Degree SANAN

5054 SMD LED RGBW Chip 2W 3W 4W 120 Degree SANAN
5054 SMD LED RGBW Chip 2W 3W 4W 120 Degree SANAN 5054 SMD LED RGBW Chip 2W 3W 4W 120 Degree SANAN 5054 SMD LED RGBW Chip 2W 3W 4W 120 Degree SANAN 5054 SMD LED RGBW Chip 2W 3W 4W 120 Degree SANAN 5054 SMD LED RGBW Chip 2W 3W 4W 120 Degree SANAN 5054 SMD LED RGBW Chip 2W 3W 4W 120 Degree SANAN

Large Image :  5054 SMD LED RGBW Chip 2W 3W 4W 120 Degree SANAN

Product Details:
Place of Origin: Guangdong, China
Brand Name: Learnew
Payment & Shipping Terms:
Minimum Order Quantity: 5000
Contact Now

5054 SMD LED RGBW Chip 2W 3W 4W 120 Degree SANAN

Description

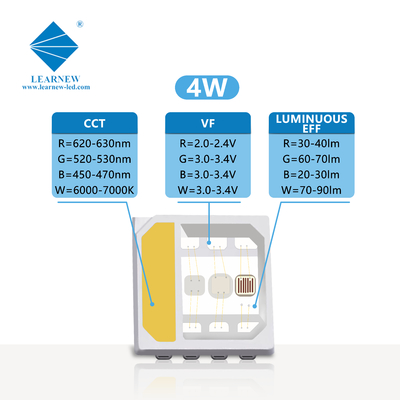

Color Temperature: 2800-7000K Input Voltage: 2.0-3.4V
Luminous Efficacy: 100 Lm/w Lifespan: 10000 Hours
Product Weight: 0.001 Kg Chip Material: AlGaInP
Emitting Color: RGBW Luminous Flux: 100 Lm
Power: 2W, 3W, 4W Viewing Angle: 120°
Color Rendering Index: 90 Ra Operating Temperature: -20 - 60℃
Storage Temperature: -40 - 80℃ Whole Size: 5.0*5.4MM
Forward Current: 150mA/300mA
Highlight:

5054 SMD LED RGBW chip

,

SANAN LED chip 2W 4W

,

120 degree SMD LED chip

5054 R5MM SMD LED RGB/RGBW 2W-4W SANAN CHIP
Product Specifications
Attribute Value
Type SMD LED
Power 2W, 3W, 4W
Input Voltage 2.0-3.4V
Viewing Angle 120°
Color Temperature 2800-7000K
Luminous Efficacy 100 lm/w
Lifespan 10,000 hours
Warranty 3-Year
Dimensions 5.0×5.4mm
Chip Material AlGaInP
Substrate PCT
Technical Details
  • Chip: SANAN CHIP (Standard A Class)

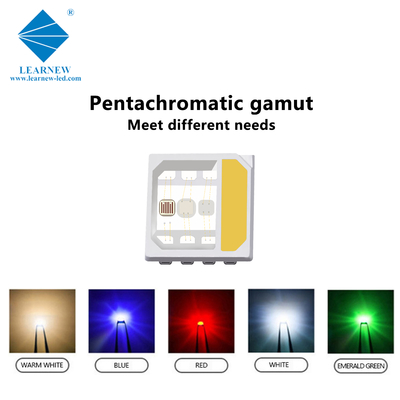

  • Emitting Color: RGBW (Red/Green/Blue/White)
  • Color Rendering Index (Ra): 90
  • Operating Temperature: -20°C to 60°C
  • Storage Temperature: -40°C to 80°C
  • Optical Attenuation: 0.1%
  • Forward Current (IF): 150mA/300mA
Design Advantages
  • PCT leadframe construction
  • High ESD protection

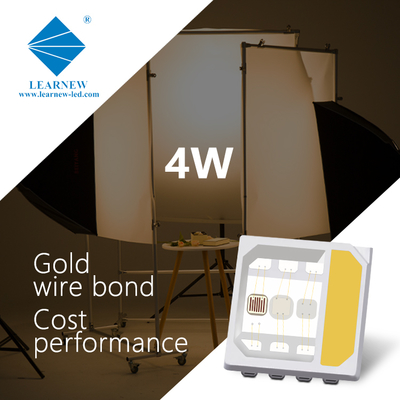

  • Gold wire bonding
  • Excellent reflow soldering capability
  • High cost-performance ratio
Product Images

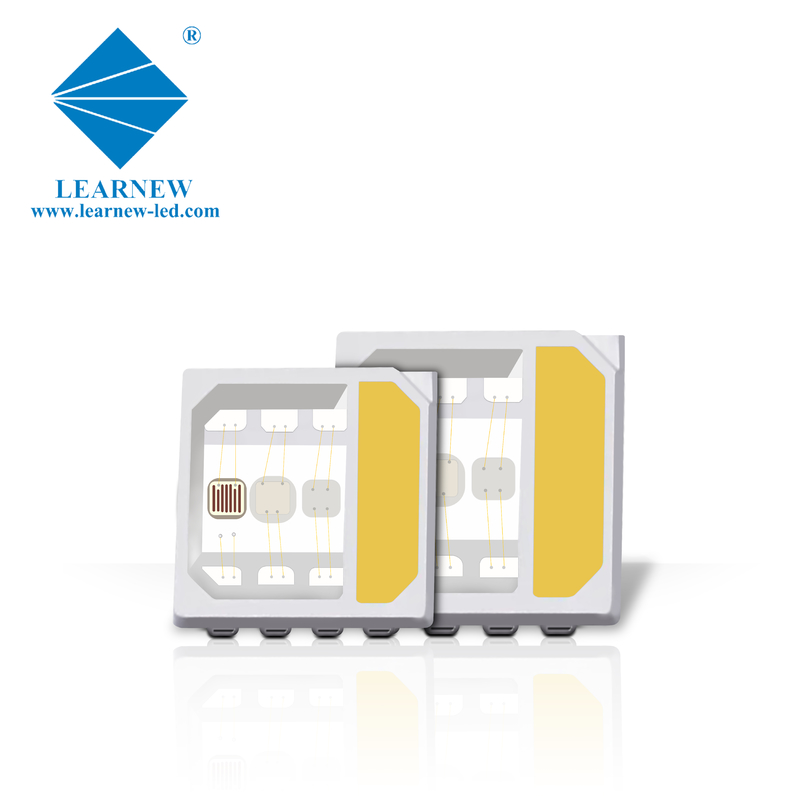

5054 SMD LED RGBW Chip 2W 3W 4W 120 Degree SANAN 0
Applications
5054 SMD LED RGBW Chip 2W 3W 4W 120 Degree SANAN 1 5054 SMD LED RGBW Chip 2W 3W 4W 120 Degree SANAN 2 5054 SMD LED RGBW Chip 2W 3W 4W 120 Degree SANAN 3
Certifications & Manufacturing
5054 SMD LED RGBW Chip 2W 3W 4W 120 Degree SANAN 4 5054 SMD LED RGBW Chip 2W 3W 4W 120 Degree SANAN 5
Packaging
5054 SMD LED RGBW Chip 2W 3W 4W 120 Degree SANAN 6 5054 SMD LED RGBW Chip 2W 3W 4W 120 Degree SANAN 7
Frequently Asked Questions
Q: Do you offer OEM/ODM services?
A: Yes, we specialize in OEM & ODM services with over 7 years of experience in custom LED solutions.
Q: Are the product images authentic?
A: All images are 100% genuine photographs of our products.
Q: What is your lead time?
A: Standard lead time is 10-15 working days. Samples can be delivered in 3 days.
Q: What payment methods do you accept?
A: We accept T/T, PayPal, Western Union, and Secure Payment.
