Product Details:
|
| POWER: | 3w | IF: | 300mA |
|---|---|---|---|
| VF: | 9-10V | WHOLE SIZE: | 13.5*13.5mm |
| VIEW ANGLE: | 120° | Products Name: | 1414 COB LED CHIP |
| High Light: | 20w COB LED Chip,COB LED chip For Car Light,3w LED COB Chips |
||
1414 series COB LED chip 3w 15w 120-140lm/w 300mA With Wholesale of new materials
COB LED CHIP products Specification:
| ITEM | POWER | CCT | Luminous flux | IF | VF | Circuit | WHOLE SIZE | LES SIZE | VIEW ANGLE | CRI | SUSTRATE | CHIPS |
| 1414 series | 3w | WW:2700-3000K; NW:4000-4500K; PW:6000-6500K. |
120-140lm/w | 300mA | 9-10V | 3S2P | 13.5*13.5mm | R11MM | 120° | 80 | MIRROR ALU | BRIDGELUX 1734 |
| HC 1734 | ||||||||||||
| 110-120lm/w | HC 1430 | |||||||||||
| 5w | 120-140lm/w | 15-17V | 5S2P | BRIDGELUX 1734 | ||||||||
| HC 1734 | ||||||||||||
| 110-120lm/w | HC 1428 | |||||||||||
| 7w | 120-140lm/w | 21-24V | 7S2P | BRIDGELUX 1734 | ||||||||
| HC 1734 | ||||||||||||
| 110-120lm/w | HC 1428 | |||||||||||
| 9w | 120-140lm/w | 27-30V | 9S2P | BRIDGELUX 1734 | ||||||||
| HC 1734 | ||||||||||||
| 110-120lm/w | HC 1428 | |||||||||||
| 12w | 120-140lm/w | 36-38V | 12S2P | BRIDGELUX 1734 | ||||||||
| HC 1734 | ||||||||||||
| 110-120lm/w | HC 1428 | |||||||||||
| 15w | 120-140lm/w | 450mA | 30-34V | 10S3P | BRIDGELUX 1734 | |||||||
| HC 1734 | ||||||||||||
| 110-120lm/w | 300mA | 45-48V | 15S2P | HC 1428 | ||||||||
| 20w | 120-140lm/w | 600mA | 30-34V | 10S4P | BRIDGELUX 1734 | |||||||
| HC 1734 | ||||||||||||
| 110-120lm/w | 300mA | 60-68V | 20S2P | HC 1428 |

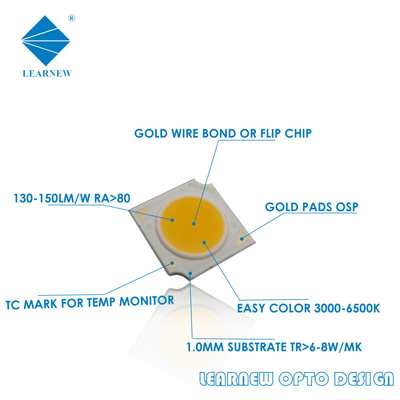

Design Advantage:
1,No glare light
2,Color consistance
3,Low life decay
4,Low thermal resistance
5,High CRI 80/90/95+
6,High standard raw materials proovide
Appilication:
1,LED spotlight
2,LED tracking light
3,LED downlight
4,LED car light
5,LED underwater lamp
7,LED bulb light
8,LED work light
9,LED ceiling light
10,LED corn light
FAQ:
Q1: Do you supply OEM,ODM service?
A1: YES,absolutely it can be realized.Learnew focus on OEM & ODM service more than 7 years.
Q2:All the pictures are real photo? A2: Yes, the pictures of all products on this page are 100% real shoot by us.
Q3: How can I get a quotation from you?
A3: Please kindly leave us messages about your needs,including products parameters,application, you contact way and quantity,our
professional team will reply you in one hour here.
Q4: Is there any discount for bulk order?
A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price. Be our fans on WhatsApp or add
learnew opto to “my favorite stores”, you will always get our discount and coupon information at the first time.
Q5: Do you support drop shipping and how much is the shipping cost?
A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the
goods according the address you have left. The shipping cost are based on your order's volume and weight, you can check on WhatsApp
or ask our team.
Q6: How to place an order? A6: You can check the shipping cost and discount
information online, and place order directly on WhatsApp. Or you can contact us for the order details, we will reply you in mins.
Q7: What payment terms are available?
A7: T/T,PayPal, Western Union and Secure Payment.
Q8: What about the lead time?
A8: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples in standard, the delivery
