Product Details:
|
| Product Name: | High Power LED Cob Chip | Consume Power: | 5w 10w 20w 30w 50w 100w 200w |
|---|---|---|---|
| Color Temperature: | 3000K/4000K/6500K | Efficiency: | 110-130lm/w |
| VF: | 35-38v | IF: | 200-5000mA |
| CHIPS: | Flip Chip | View Angle: | 120DEG |
| CRI: | Ra80 Ra90 Ra95 Ra98 | Substrate: | Aluminum Or Copper |
| Size: | 1414 1919 2828 3838 4046 | Application: | LED Spotlight LED Tracking Light LED Downlight |
| High Light: | 5w 6500K COB LED,10W 6500K COB LED,5w LED Chips |
||

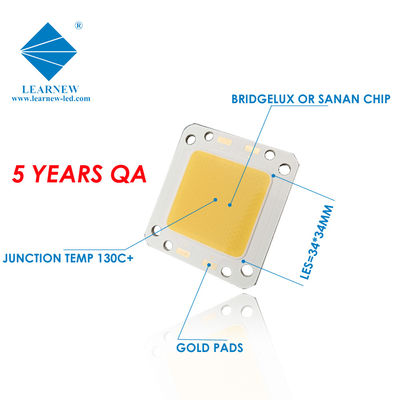

Color Temperature 3000K 4000K 6500K COB LED Aluminum Copper Substrate
5w 10w 20w 30w 50w 100w 200w high efficiency high CRI 36v 3000K/4000K/6500K white and warm white color LED COB chip
product details
Product Specifications
| Models | Consume power | CCT | LM/W | IF | VF | Circuit | CHIPS | Whole Size | Emit size | View angle | CRI | Substrate |
| 1414 series | 10-15W | 2700-6500K | 110-130lm/w | 280-400mA | 35-38V | 12S2P | Flip chip | 13.5*13.5mm | R10.5mm | 120DEG | Ra>80 | Super aluminum |
| 1414 series | 15-30W | 2700-6500K | 110-130lm/w | 400-800mA | 35-38V | 12S4P | Flip chip | 13.5*13.5mm | R10.5mm | 120DEG | Ra>80 | Super aluminum |
| 1919 series | 25-35W | 2700-6500K | 110-130lm/w | 700-1000mA | 35-38V | 12S4P | Flip chip | 19*19mm | R17mm | 120DEG | Ra>80 | Super aluminum |
| 1919 series | 35-50W | 2700-6500K | 110-130lm/w | 900-1200mA | 35-38V | 12S7P | Flip chip | 19*19mm | R17mm | 120DEG | Ra>80 | Super aluminum |
| 2828 series | 40-60W | 2700-6500K | 110-130lm/w | 1100-1500mA | 35-38V | 12S8P | Flip chip | 28*28mm | R23mm | 120DEG | Ra>80 | Super aluminum |
| 2828 series | 50-80W | 2700-6500K | 110-130lm/w | 1350-2200mA | 35-38V | 12S12P | Flip chip | 28*28mm | R23mm | 120DEG | Ra>80 | Super aluminum |
| 3838 series | 75-150W | 2700-6500K | 110-130lm/w | 2100-4000mA | 35-38V | 12S30P | Flip chip | 38*38mm | R30mm | 120DEG | Ra>80 | Super aluminum |
| 4046 series | 40-60W | 2700-6500K | 110-130lm/w | 1250-1800mA | 30-34V | 10S10P | Flip chip | 40*46mm | 25*25mm | 120DEG | Ra>80 | Super aluminum |
| 4046 series | 80-120W | 2700-6500K | 110-130lm/w | 2500-4000mA | 30-34V | 10S21P | Flip chip | 40*46mm | 25*25mm | 120DEG | Ra>80 | Super aluminum |
| 4046 series | 150-200W | 2700-6500K | 110-130lm/w | 3500-4500mA | 42-48V | 14S30P | Flip chip | 40*46mm | 25*25mm | 120DEG | Ra>80 | Super aluminum |
Design advantage
FAQ
Q1: Do you supply OEM,ODM service?
A1: YES,absolutely it can be realized.Learnew focus on OEM & ODM service more than 7 years.
Q2: All the pictures are real photo?
A2: Yes, the pictures of all products on this page are 100% real shoot by us.
Q3: How can I get a quotation from you?
A3: Please kindly leave us messages about your needs,including products parameters, application, you contact way and quantity,our professional team will reply you in one hour here.
Q4: Is there any discount for bulk order?
A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price. Be our fans on alibaba or add learnew opto to “my favorite stores”, you will always get our discount and coupon information at the first time.
Q5: Do you support drop shipping and how much is the shipping cost?
A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the goods according the address you have left. The shipping cost are based on your order's volume and weight, you can check on alibaba or ask our team.
Q6: How to place an order?
A6: You can check the shipping cost and discount information online, and place order directly on Alibaba. Or you can contact us for the order details, we will reply you in mins.
Q7: What payment terms are available?
A7: T/T,PayPal, Western Union and Secure Payment.
Q8: What about the lead time?
A8: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples in standard, the delivery could be 3 days.
