Product Details:
|
| IF: | 1250-1800mA 2500-4000mA 3500-4500mA | CCT: | 2700-6500K |
|---|---|---|---|
| SUBSTRATE: | Super-Aluminum | CRI: | 70/80/90/95 |
| VF: | 30-33V 42-48V | Power: | 40W 80W 150w |
| WHOLE SIZE: | 40*46MM | VIEW ANGLE: | 120° |
| High Light: | 40x46MM COB Flip Chip,Super Aluminum Substrate COB Flip Chip,48v LED COB Chips |
||
LEARNEW 40-200w 30-48v 2700-6500K 40*46MM Commercial Lighting
COB Filp Chip manufacturer
COB LED Product Specifications
| Model | 4046 SERIES | ||
|---|---|---|---|
| POWER | 40W-60W | 80W-120W | 150W-200W |
| IF | 1250-1800mA | 2500-4000mA | 3500-4500mA |
| VF | 30-33V | 30-33V | 42-48V |
| Circuit | 10S10P | 10S21P | 14S30P |
| CCT | 2700-6500K | 2700-6500K | 2700-6500K |
| WHOLE SIZE | 40*46MM | 40*46MM | 40*46MM |
| LM/W | 120-140 | 120-140 | 120-140 |
| EMIT SIZE | 25*25MM | 25*25MM | 25*25MM |
Commercial Lighting Appilcation:

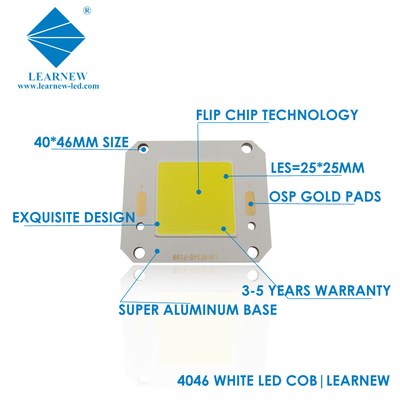

Filp Chip Design Advantage:

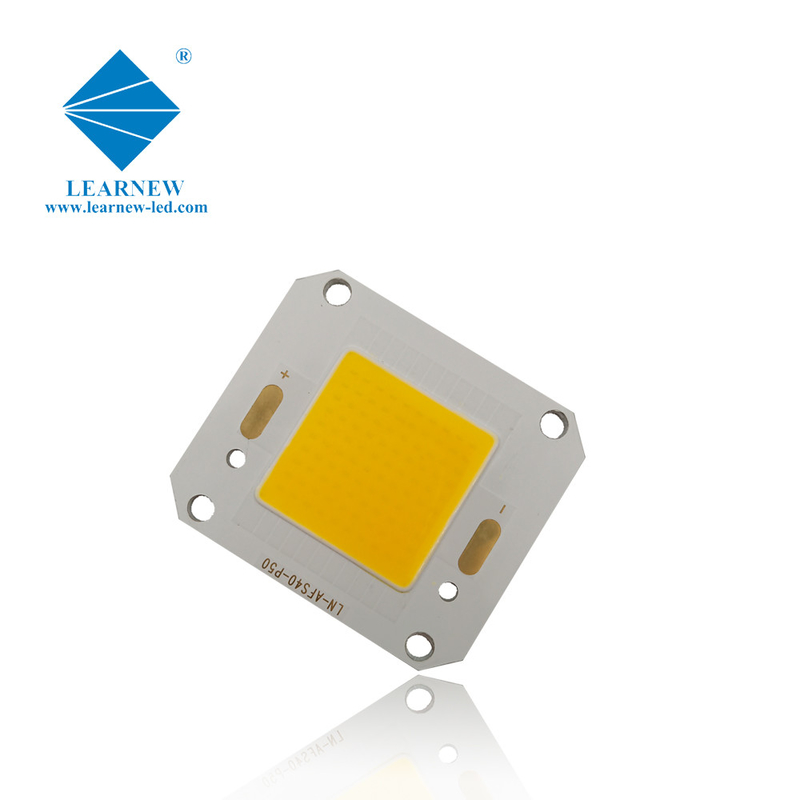

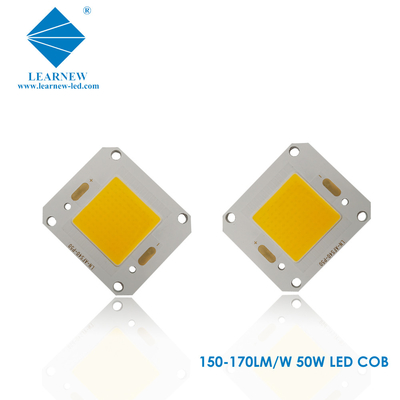

4046series Pictures:
FAQ
Q1: Do you supply OEM,ODM service?
A1: YES,absolutely it can be realized.
Q2: All the pictures are real photo?
A2: Yes, the pictures of all products on this page are 100% real shoot by us.
Q3: How can I get a quotation from you?
A3: Please kindly leave us messages about your needs,including products and quantity,our professional team will reply you very soon (mostly within few hours).
Q4: Is there any discount for bulk order?
A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price.
Q5: Do you support drop shipping and how much is the shippping cost?
A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the goods according the address you have left. The shipping cost are based on your order's volume and weight, and it can be calculated.
Q6: How to place an order?
A6: If you want to place an order, Please feel free to send us an inquiry email or contact us by trademanager online, we will reply you within 24hours(working day).
Q7: What payment terms are available?
A7: T/T,PayPal, Western Union and Secure Payment.
Q8: What about the lead time?
A8: It depends on the order quantity. In general, lead time is about 3-75working days. For samples, the delivery could be as fast as same day.
