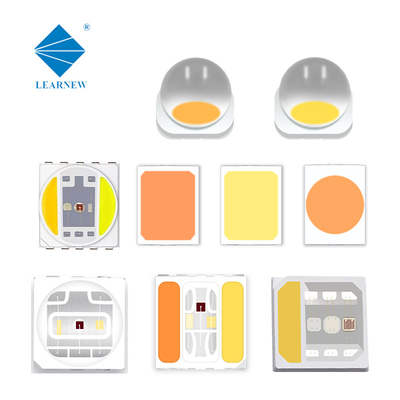

Product Details:
|
| NAME: | SMD LED CHIP | POWER: | 0.5W / 1.5W / 2.5W |
|---|---|---|---|
| CCT: | WW=2400-2700K CW=7000-7500K | Color Rendering Index: | >90/95 |
| VIEW ANGLE: | 120° | IF: | 60mA (Max=150mA)/150mA |
| High Light: | 6064 SMD LED Chip,Full Spectrum SMD LED Chip,Photography Light SMD LED Chip |
||
| PART NUMBER | POWER | CCT | LUMINUOUS EFF | Color Rendering Index | IF | VF | WHOLE SIZE |
| LN-SMD2835XW-P0.5-HXS | 0.5W | WW=2400-2700K CW=7000-7500K |
WW=20-25lm CW=25-27lm |
>90/95 | 60mA (Max=150mA) |
2.7-3.4V | 2.8*3.5MM |

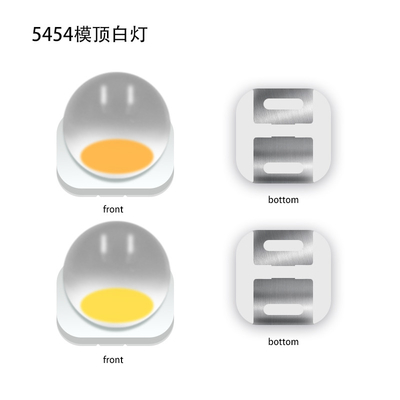

| LN-SMD5454XW-P0.5-HXW | 0.5W | WW=2400-2700K CW=7000-7500K |
WW=45-55lm CW=50-60lm |
>90/95 | 150mA | 3.0-3.4V | 5.4*5.4MM |
| LN-SMD5054RGB-P1.5-HXS | 1.5W | R=620-625nm G=525-530nm B=458-465nm |
R=23-28lm G=38-45lm B=10-15lm |
Non | 150mA | R=2.0-2.4V G=2.8-3.2V B=3.0-3.4V |
5.0*5.4MM |
| LN-SMD5053RGB-P1.5-HXR | 1.5W | R=620-625nm G=525-530nm B=458-465nm |
R=23-28lm G=38-45lm B=10-15lm |
Non | 150mA | R=2.0-2.4V G=2.8-3.2V B=3.0-3.4V |
5.0*5.4MM |

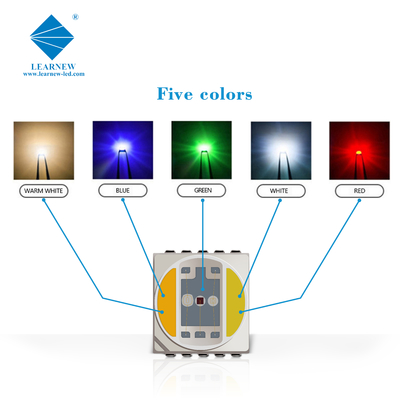

| LN-SMD5054RGBWW-P2.5-HXS | 2.5W | R=620-625nm G=525-530nm B=458-465nm WW=2300-2500K CW=8000-9000K |
R=20-25lm G=35-40lm B=5-12lm WW=35-40lm CW=42-48lm |
WW>90 CW>95 |
150mA | R=2.0-2.4V G=2.8-3.2V B=3.0-3.4V WW=3.0-3.4V CW=3.0-3.4V |
5.0*5.4MM |

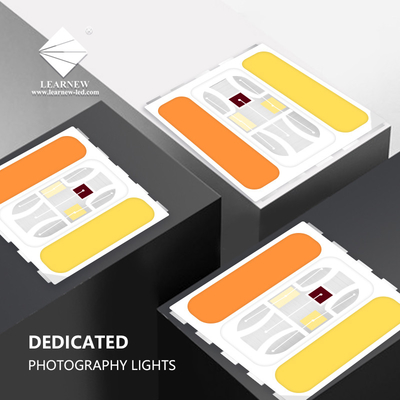

| LN-SMD6064RGBWW-P2.5HX | 2.5W | R=620-625nm G=525-530nm B=458-465nm WW=2300-2500K CW=8000-9000K |
R=20-25lm G=35-40lm B=5-12lm WW=35-40lm CW=42-48lm |
WW>90 CW>95 |
150mA | R=2.0-2.4V G=2.8-3.2V B=3.0-3.4V WW=3.0-3.4V CW=3.0-3.4V |
6.0*6.4MM |
SMD LED CHIP DESIGN ADVANTAGE
1,PCT leadframe.
2,High ESD pass
3,Standard A Class chips.
4,Cost performance.
5,Gold wire bond.
6,Easy reflow sodering.
APPLICATION
1,LED Photography light
2,LED landscape lighting
3,LED Studio light
FAQ:
Q1: Do you supply OEM,ODM service?
A1: YES,absolutely it can be realized.Learnew focus on OEM & ODM service more than 7 years.
Q2:All the pictures are real photo? A2: Yes, the pictures of all products on this page are 100% real shoot by us.
Q3: How can I get a quotation from you?
A3: Please kindly leave us messages about your needs,including products parameters,application, you contact way and quantity,our
professional team will reply you in one hour here.
Q4: Is there any discount for bulk order?
A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price. Be our fans on WhatsApp or add
learnew opto to “my favorite stores”, you will always get our discount and coupon information at the first time.
Q5: Do you support drop shipping and how much is the shipping cost?
A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the
goods according the address you have left. The shipping cost are based on your order's volume and weight, you can check on WhatsApp
or ask our team.
Q6: How to place an order? A6: You can check the shipping cost and discount
information online, and place order directly on WhatsApp. Or you can contact us for the order details, we will reply you in mins.
Q7: What payment terms are available?
A7: T/T,PayPal, Western Union and Secure Payment.
Q8: What about the lead time?
A8: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples in standard, the delivery
