Product Details:
|
| Power: | 0.2w 0.5w 1w | Series: | 2835 Series ;3030Series |
|---|---|---|---|
| VIEW ANGLE: | 120° | Type: | 2835SMD LED ;3030 SMD LED |
| IF: | 60-300mA | Dominant Wavelength: | 380-780nm |
| Appilcation: | 1,LED General Lighting Market | Sevices: | Support Custom LED Modules |
| High Light: | 2835 Grow LED Chip,SMD 3030 Grow LED Chip,SMD LED Chips 0.5W |
||

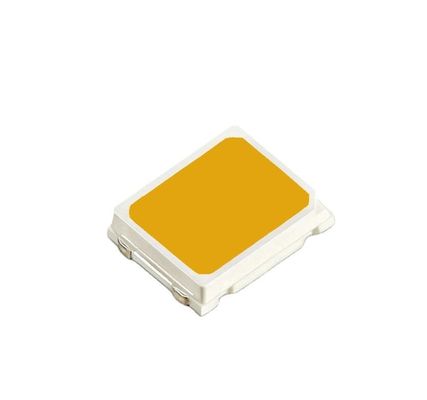

0.2W 0.5W 1W SMD LED 3030 2835 White LED SMD Grow LED Chip from LED outdoor light grow light
Product Specification
| POWER | 0.2W |
| Dominant Wavelength | WW=2800-3200K NW=4000-4500K PW=6000-6500K |
| Luminous Flux | 24-30lm |
| IF | 60mA |
| VF | 3.4-3.8V |
| WHOLE SIZE | 2.8*3.5MM |
| VIEW ANGLE | 120° |
| POWER | 0.5W |
| Dominant Wavelength | WW=2800-3200K NW=4000-4500K PW=6000-6500K |
| Luminous Flux | 60-75lm |
| IF | 150mA |
| VF | 3.0V/9.0V/18.0V |
| WHOLE SIZE | 2.8*3.5MM |
| VIEW ANGLE | 120° |
| POWER | 1W |
| Dominant Wavelength | WW=2800-3200K NW=4000-4500K PW=6000-6500K |
| Luminous Flux | 120-140lm |
| IF | 300mA |
| VF | 3.0V/9.0V/18.0 |
| WHOLE SIZE | 2.8*3.5MM |
| VIEW ANGLE | 120° |
| Service1 | Support Sample Services |
| Service2 | Support Customer Customization Services |
| POWER | 0.5W |
| Dominant Wavelength | 380nm-780nm |
| LUMINUOUS EFF | 0.02-25lm |
| IF | 150-300mA |
| VF | 1.8V-3.4V |
| WHOLE SIZE | 3.0*3.0mm |
| VIEW ANGLE | 120° |
| POWER | 1.0W |
| Dominant Wavelength | 3000-3500K 4000-4500K 6000-6500K 380nm-789nm |
| LUMINUOUS EFF | 0.05-220lm |
| IF | 150-300mA |
| VF | 1.8-3.4V |
| WHOLE SIZE | 3.0*3.0mm |
| VIEW ANGLE | 120° |
| Service1 | Support sample Services |
| Service2 | Support Customer Cuctomization Services |
| Brand | Learnew Opto |
0.2W 0.5W 1W SMD LED 3030 2835 White LED SMD Grow LED Chip from LED outdoor light grow light
This is our 3030 2835 SMD Series product,it is have 0.2W; 0.5W ;1W;The color Dominant Wavelength is between 380-780nm,and the white light range is between 3000K-6500K.This product can be designed as a module.
We support customer customization. You can send a picture of the LED product you need and attach some specific parameters.
After we receive it, we will discuss with our engineering team as soon as possible and evaluate the feasibility of the product.
0.2W 0.5W 1W SMD LED 3030 2835
Payment Term&Delivery time
1,All advanced payment is needed before start design and production.
Q8: What about the lead time?
