Home ProductsUVC LED Chip

Ceramic 365nm 380nm 400nm 3535 UV IR LED Chip 420nm 660nm 1w 3w

Certification
China Shenzhen Learnew Optoelectronics Technology Co., Ltd. certification
China Shenzhen Learnew Optoelectronics Technology Co., Ltd. certification
I'm Online Chat Now

Ceramic 365nm 380nm 400nm 3535 UV IR LED Chip 420nm 660nm 1w 3w

Ceramic 365nm 380nm 400nm 3535 UV IR LED Chip 420nm 660nm 1w 3w
Ceramic 365nm 380nm 400nm 3535 UV IR LED Chip 420nm 660nm 1w 3w
Ceramic 365nm 380nm 400nm 3535 UV IR LED Chip 420nm 660nm 1w 3w Ceramic 365nm 380nm 400nm 3535 UV IR LED Chip 420nm 660nm 1w 3w

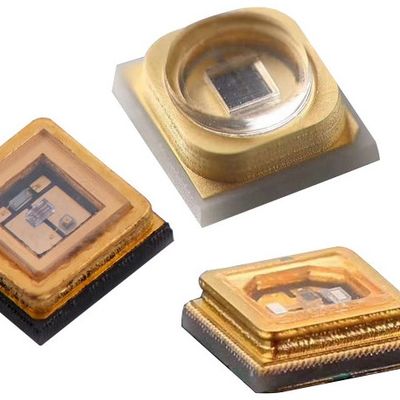

Large Image :  Ceramic 365nm 380nm 400nm 3535 UV IR LED Chip 420nm 660nm 1w 3w

Product Details:
Place of Origin: CHINA
Brand Name: LEARNEW
Certification: CE RoHS SGS
Model Number: LN-SMD3535UVC-P3
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: USD4.0-7.0/PCS
Packaging Details: Anti-static Blister packing
Delivery Time: 7-12 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100,000PCS per month

Ceramic 365nm 380nm 400nm 3535 UV IR LED Chip 420nm 660nm 1w 3w

Description
Color: Deep UV Peak Wavelength: 250-260nm/260-270nm/270-280nm
Input Current: 350-500mA Size: 3.5*3.5mm
LENS: Quartz Glass Optical Power: 80-120mW
Circuit: 1S1P View Angle: 120DEG
High Light:

365nm IR LED Chip

,

3535 UV IR LED Chip

,

660nm UV LED Chip

Ceramic 365nm 380nm 400nm 3535 Uv Ir Led Chip 420nm 660nm 730nm 850nm 940nm 1w 3w

high effiency 80-120mw optical power 255nm 285nm high power uv led germicidal 3535 uvc smd LEDCeramic 365nm 380nm 400nm 3535 UV IR LED Chip 420nm 660nm 1w 3w 0

models LN-SMD3535UVC-P3(250-260nm) LN-SMD3535UVC-P3(260-270nm)

LN-SMD3535UVC-

P3(270-280nm)

Electronic power 3.0W 3.0W 3.0W
Peak wavelength

250-260nm

260-270nm 270-280nm
Radiant power 80-120mW 80-120mW 80-120mW
Working current 350-500mA 350-500mA 350-500mA
Working voltage 6.0-8.0V 6.0-8.0V 6.0-8.0V
Circuit 1 chip 1 chip 1 chip
Packing technology New Generation Flip chip LG/Seoul semi/Dowa/PW New Generation Flip chip LG/Seoul semi/Dowa/PW New Generation Flip chip SLG/Seoul semi/Dowa/PW
LED Diode size 3.5*3.5mm 3.5*3.5mm 3.5*3.5mm
LENS Quartz Glass Quartz Glass Quartz Glass
View angle 120DEG 120DEG 120DEG
Substrate design ALN coppering ALN coppering ALN coppering
Thermal resistance 0.1-0.2C/W 0.1-0.2C/W 0.1-0.2C/W
Life span(LM50) 10,000 hrs 10,000 hrs 10,000 hrs















Ceramic 365nm 380nm 400nm 3535 UV IR LED Chip 420nm 660nm 1w 3w 1

  • Long life span,LM70>=3000 hrs and LM50>=6,000 hrs.
  • Certifications
  • High radiant flux
  • Low thermal resistance
  • Ingorganic encapsulation and Quartz Glass package

Ceramic 365nm 380nm 400nm 3535 UV IR LED Chip 420nm 660nm 1w 3w 2

Ceramic 365nm 380nm 400nm 3535 UV IR LED Chip 420nm 660nm 1w 3w 3

Ceramic 365nm 380nm 400nm 3535 UV IR LED Chip 420nm 660nm 1w 3w 4

Ceramic 365nm 380nm 400nm 3535 UV IR LED Chip 420nm 660nm 1w 3w 5Ceramic 365nm 380nm 400nm 3535 UV IR LED Chip 420nm 660nm 1w 3w 6

Ceramic 365nm 380nm 400nm 3535 UV IR LED Chip 420nm 660nm 1w 3w 7

Q1: Do you supply OEM,ODM service?

A1: YES,absolutely it can be realized.



Q2: All the pictures are real photo?

A2: Yes, the pictures of all products on this page are 100% real shoot by us.



Q3: How can I get a quotation from you?

A3: Please kindly leave us messages about your needs,including products and quantity,our professional team will reply you very soon (mostly within few hours).



Q4: Is there any discount for bulk order?

A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price.



Q5: Do you support drop shipping and how much is the shippping cost?

A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the goods according the address you have left. The shipping cost are based on your order's volume and weight, and it can be calculated.



Q6: How to place an order?

A6: If you want to place an order, Please feel free to send us an inquiry email or contact us by trademanager online, we will reply you within 24hours(working day).



Q7: What payment terms are available?

A7: T/T,PayPal, Western Union and Secure Payment.



Q8: What about the lead time?

A8: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples, the delivery could be as fast as same day.

We have professional laboratories and researchers, and carry out a large number of experiments and tests on the ratio of lamp beads to ensure the scientific and effective. We warmly welcome to send us the engineering drawing of your project to get the solutions for you.
