Product Details:
|
| NAME: | 6868 IR LED CHIP | IF: | 700mA (Max=1.0A) |
|---|---|---|---|
| POWER: | 5-8W | VF: | 5.0-8.0V |
| Warranty: | 2 Years Or 10,000 Hrs | WHOLE SIZE: | 6.8*6.8MM |
| High Light: | 6868 IR LED Chips,8W SMD LED Chip,730nm 850nm Red LED Chip |
||

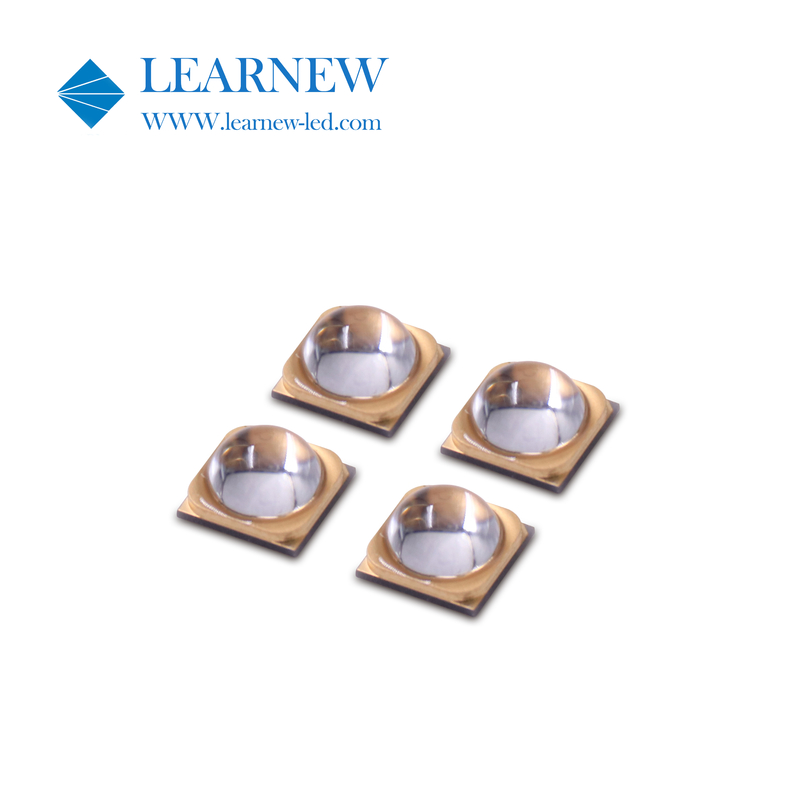

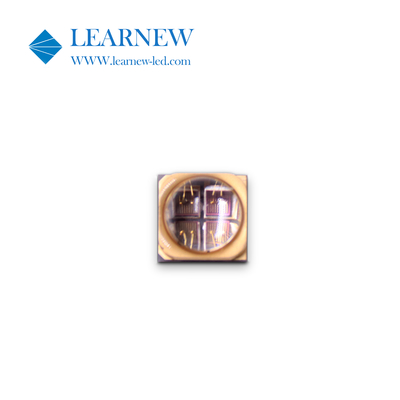

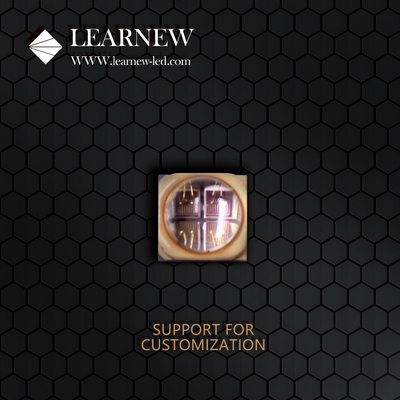

IR Light CHIP 6868 5-8W SMD LED Chip 730nm 850nm Red LED Chip 6868 LED IR CHIP
Specification
|
INFRARED |
POWER |
Dominant Wavelength |
Optical Power |
IF |
VF |
Circuit |
WHOLE SIZE |
Lighting Area |
VIEW ANGLE |
LENS |
SUBSTRATE |
CHIPS |
Warranty |
|

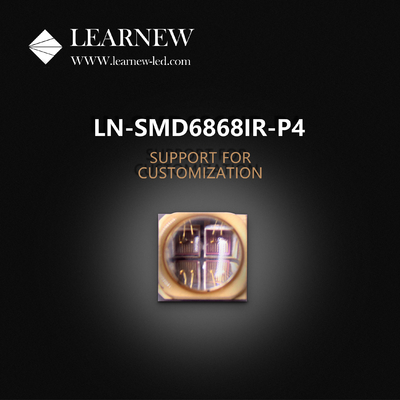

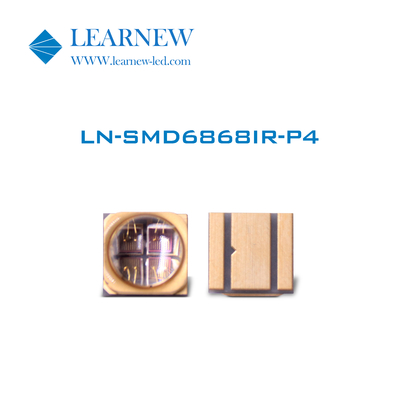

LN-SMD6868IR-P4 |
5-8W |
730-740nm |
1400-2000mW |
700mA |
7.0-8.0V |
4S1P |
6.8*6.8MM |
R5.0MM |
120° |
QUARTZ GLASS LENS |
ALN Coppering |
VERTICAL (EPILED or EPISTAR) |
2 years or 10,000 Hrs |
|
840-850nm |
1200-1600mW |
700mA (Max=1.0A) |
6.0-7.0V |
||||||||||
|
940-950nm |
1200-1600mW |
5.0-6.5V |
6868 LED chip Design Advantage
1,Long life span
2,low thermal resistance
3,High effiency 20%+
4,Ingorganic encapsulation
5,High density and intensity
6,Special view angle in 30DEG or 120DEG
7,Super power for IR series
8,Narrow peak wavelength
smd ir led chip Appilcation
1,Sensor
2,Skin protection
3,Cameras
4,3D printing
5,Virtual Reality
6,Automotive
7,Machine Vision
8,Finger-vein Biometrics
6868 IR LED FAQ:
Q: What technical support can I get after purchase?
A: Data sheet and PDF will be provided to dear you. Our sales engineer will be answering your questions any time.
Q: If there is LED failure, how can you support?
A: Clients provide us with pictures of the failed products or the samples rejected And give a test report, our engineers of after sale team will analyze the failure reasons. If the failure was caused by Learnew, we will compensate with qualified replacement as fast as we could!
Q: Would you offer free samples?
A: Yes. For our factory to produce conventional white light products, we will provide 2pcs. The sample cost of other custom designed products will be deducted from the customer's subsequent orders.
Q: Are you manufacturer or trade company?
A: In worldwide market, Learnew is well know as an experienced and professional LED manufacturer.
Q: What about the lead time?
A: It depends on the order quantity. Generally the lead time should be 7-12 working days.
Q: What payment method do you accept?
A: We accept T/T, Paypal, Western Union and others more as clients’ requirements.
Q: How can I get a quotation from you?
A: Please kindly leave us messages about your needs,including products and quantity.Our professional sales team will reply you within minutes/hours.
Q: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 2-6 working days to arrive. Airline and sea shipping also are optional.
Q: Could you please send me the sample for the same.So that i could see and analyze its quality?
A: Yes. We can send samples first, samples will be free charged if the value is lower.
