Product Details:
|
| Item: | UVC LED Chips | POWER: | 3W/5W |
|---|---|---|---|
| Dominant Wavelength: | 250NM-280NM | Optical Power: | 80-120mW |
| IF: | 500-700mA | VF: | 5-7V |
| WHOLE SIZE: | 3.5*3.5MM | VIEW ANGLE: | 120° |
| LENS: | QUARTZ GLASS LENS | SUBSTRATE: | ALN Coppering |
| Life Span: | LM70=5000Hrs LM50=10000Hrs | JUNCTION TEMPERATURE: | 60C |
| High Light: | 3.5*3.5MM UVC LED Chips,UVC LED Chips For Air Purifier,280nm UV C LED Chip |
||

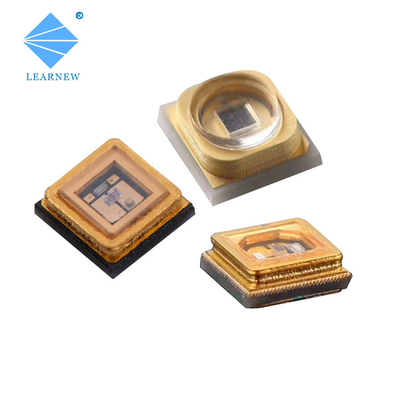

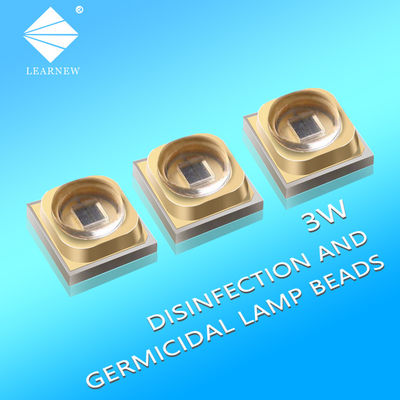

3.5*3.5MM UVC LED chips 2W 3W 5W Narrow Wavelength 250nm-280nm High radiant flux UVC LED Chips for Air purifier
2W 3-5W UVC LED CHIPS PARAMETERS
| UV-C | POWER | Dominant Wavelength | Optical Power | IF | VF | WHOLE SIZE | VIEW ANGLE | LENS | SUBSTRATE | Life span | JUNCTION TEMPERATURE |
| LN-SMD3535UVC-P2 | 2W | 270-280nm (Sterilization) |
30-40mW | 200mA | 5-7V | 3.5*3.5MM | 120° | QUARTZ GLASS LENS | ALN Coppering | LM70=5000Hrs LM50=10000Hrs |
60C |
| LN-SMD3535UVC-P3 | 3-5W | 270-280nm | 80-120mW | 500-700mA | 5-7V | 3.5*3.5MM | 120° | QUARTZ GLASS LENS | ALN Coppering | ||
| 260-270nm | 80-120mW | ||||||||||
| 250-260nm | 80-120mW | ||||||||||
| LN-SMD3535UVC-P3D | 3W | 270-280nm | 50-70mW | 350-500mA | 5-7V | 3.5*3.5MM | 120° | QUARTZ GLASS LENS | ALN Coppering | ||
| 260-270nm | 50-70mW | ||||||||||
| 250-260nm | 50-70mW |
UVC LED Chips Design Advantage
1,Quartz glass package
2,High radiant flux
3,Narrow Wavelength
4,Inorganic & Nitrogen package
5,Low thermal resistance
UVC CHIPS Appilcation
1.ICU Hospital
2.Air purifier
3.Water purifier
4.Washing machines
5.Sterilization...
FAQ
Q1: Do you supply OEM,ODM service?
A1: YES,absolutely it can be realized.
Q2: All the pictures are real photo?
A2: Yes, the pictures of all products on this page are 100% real shoot by us.
Q3: How can I get a quotation from you?
A3: Please kindly leave us messages about your needs,including products and quantity,our professional team will reply you very soon (mostly within few hours).
Q4: Is there any discount for bulk order?
A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price.
Q5: Do you support drop shipping and how much is the shippping cost?
A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the goods according the address you have left. The shipping cost are based on your order's volume and weight, and it can be calculated.
Q6: How to place an order?
A6: If you want to place an order, Please feel free to send us an inquiry email or contact us by trademanager online, we will reply you within 24hours(working day).
Q7: What payment terms are available?
A7: T/T,PayPal, Western Union and Secure Payment.
Q8: What about the lead time?
A8: It depends on the order quantity. In general, lead time is about 3-75working days. For samples, the delivery could be as fast as same day.
