Product Details:
|
| VF: | 3.4-3.8V | Lens Type: | QUARTZ GLASS LENS |
|---|---|---|---|
| SUBSTRATE: | ALN Coppering | CHIPS: | VERTICAL (EPILED & Sanan) |

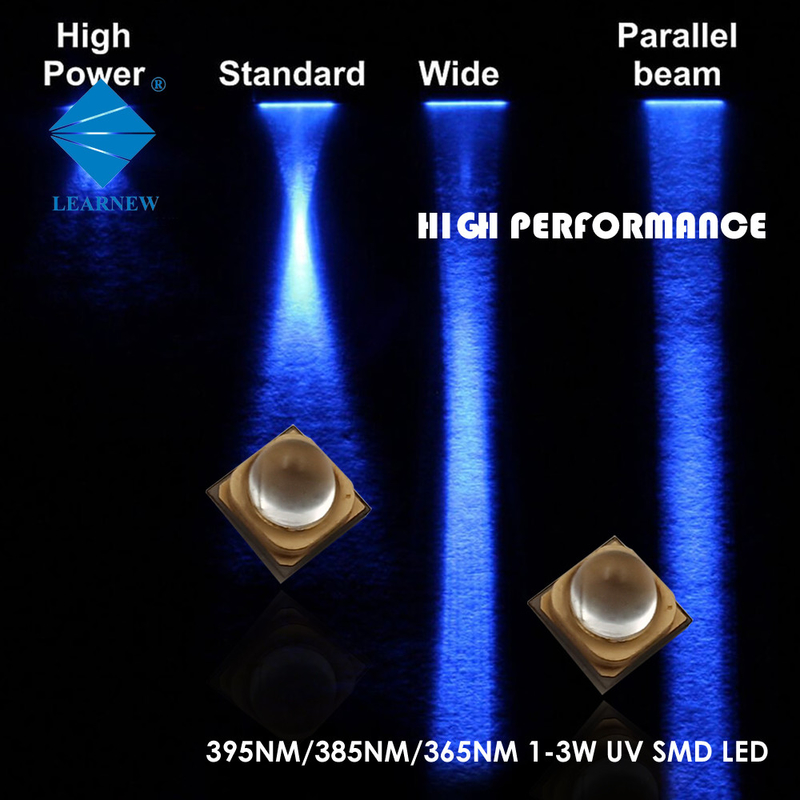

| VIEW ANGLE: | 60° | Warranty: | 3 Years |
| Lighting Area: | R3.0MM | Circuit: | 1S1P |
| Dominant Wavelength: | 365nm 385nm 395nm | Optical Power: | 1050-1250mW |
| High Light: | smd uv led chip 365nm,curing uv led chip 365nm |
||
High Optical Power UVA SMD 3535 3838 8025 Far Uvc Led 385nm 395nm 365nm 405nm For UV Curing
3838 UV LED CHIP Specifications
| Product Name | 365-395nm UVA LED Chip | Product Model | LN-SMD3838UV-P1 |
| Power Dissipation | 3W | Light Color | UV Lights |
| Forward Voltage | 3.4-3.8V | Viewing Angle | 60° |
| Forward Current | 700-1400mA | Operating Temperature | -40~+80 ℃ |

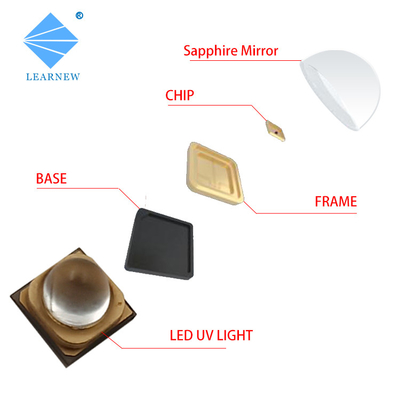

| SUBSTRATE | ALN Coppering | Storage Temperature | -40~+100 ℃ |
| Wavelength | 365-395nm | Soldering Temperature | 260℃ |
3838 UVA LED Design Advantage
1,Long life span
2,low thermal resistance
3,High effiency
4,Ingorganic encapsulation
UV LED CHIP Appilcation
1,LED plant Growing Market
2,UV curing,Inkjet curing
3,Photosensitive
WHAT IS UV?
As air is opaque to UV radiation of less than 200nm wavelength, it is often subdivided into:
Near UV (380-200nm wavelength)
Extreme or Vacuum UV (200-10nm)
More commonly, when used in connection with human health and the environment, it is subdivided into:
UV-A: 315-400nm
UV-B: 280-315nm
UV-C: 250-280nm
In respect of UV curing there is also UVV (UV visible, 400-450nm). As the name suggests, UVV extends into the visible light spectrum.
WHY CHOOSE US
Learnew LED's Advantage
Never worry about our PRODUCT QUALITY;
Good Raw Material used and strict production process controlled
Famous Branded Chips 99.9%Purity Gold Wires
Original genuine Bridgelux,Epistar,Osram,Epileds,San'an chips...
High lumen,strong anti-static ability,good consistency.. High conductivity,good toughness, good stability..
Red Copper Lead Frame NarrowBinning&Voltage Sorting
High conductivity>400w/mk and thick silver coating: 80-120u One or two binning available,SDCM<3or 5 step ,0.1Vvoltage sorting available
We can offer ANY LED PRODUCT you want to;Customized LED Product available.
