High Density 200W 395nm UV LED Chips With Quartz glass lens

High Density 200W 395nm UV LED Chips With Quartz glass lens
High Density 200W 395nm UV LED Chips With Quartz glass lens High Density 200W 395nm UV LED Chips With Quartz glass lens High Density 200W 395nm UV LED Chips With Quartz glass lens

Large Image :  High Density 200W 395nm UV LED Chips With Quartz glass lens

Product Details:
Place of Origin: China
Brand Name: LEARNEW OPTO
Certification: CE/RoHs
Model Number: LN-CVS35UV-P84-A
Payment & Shipping Terms:
Minimum Order Quantity: 50PCS
Price: USD Current $85 TO $95 Per Pieces
Packaging Details: Under 10pieces, anti-static bag and Foam will be used for pacakge, shipping parcel box size 22mm*13mm*15mm
Delivery Time: 7-12 working days
Payment Terms: T/T, Paypal, Alipay, Wechat
Supply Ability: 10000 per month

High Density 200W 395nm UV LED Chips With Quartz glass lens

Description
Substrates: ALN Coppering View Angle: 30°
Whole Size: 35*35MM Lighting Area: 22*35MM
LENS: QUARTZ GLASS LENS VF: 38-48V
IF: 5000mA(Max=7000mA) Density: 5000+mW/CM2 At 80MM Distance
Chips: LG Or SEOUL
High Light:

395nm UV LED Chips

,

200W UV LED Chips

,

395nm LED UV Chips

High Density 200W 395nm UV LED Chips With Quartz Glass Lens



High Density 200W 395nm UV LED Chips At 80MM Distance Results 5000+MW/CM2



Learnew new uva-led 38-48V 200W 3535 365nm 385nm 395nm led uv chips for uv led curing system

models LN-CVS35UV-P84-A
Dominant Wavelength 395nm
Optical Power 84000-98000mW
Circuit 12S7P
Lighting Area 22*35MM
CHIPS VERTICAL(LG or SEOUL SEMI)
LENS QUARTZ GLASS LENS
SUBSTRATE ALN Coppering



















Design Advantage:

  • low thermal resistance
  • High effiency 40%-50%
  • High density and intensity
  • Screw free assemble for high power curing use
  • Multi wavelength 365nm/385nm/395nm/405nm/420nm in one design
  • Special view angle in 30DEG or 120DEG



Appilcation:

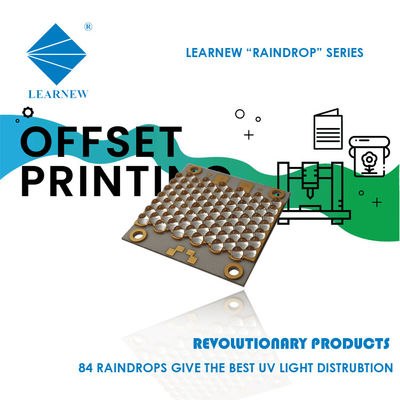

  • Offset printer
  • 3D printer
  • Exposure machines
  • Inkjet printer
  • High intensity curing Market like 3KW,7kW,15KW...

High Density 200W 395nm UV LED Chips With Quartz glass lens 0



Q:Are you manufacturer or trade company?

A:We are an experienced and professional LED manufacturer.also,We have very experienced R&D engineers and we have strong ability to do ODM projects.Quality is guaranteed by professional team of R&D and QC.



Q: What technical support can I get after purchase?

A:Data sheet and operation manual will be provided to dear you. Our sales engineer will be answering your questions any time.



Q: If there is LED failure, how can you support?

A:Customers provide pictures of the failed products or the samples rejected, the engineer will analyze the failure and find out the reasons. If the failure was caused by the product quality, we will compensate with qualified replacement!
