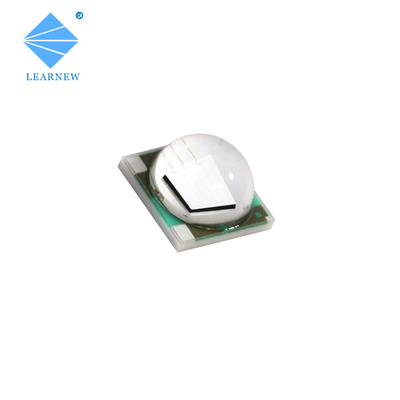

50-60LM/W 3535 LED Chip 700mA 1000mA High Power LED 4W

50-60LM/W 3535 LED Chip 700mA 1000mA High Power LED 4W
50-60LM/W 3535 LED Chip 700mA 1000mA High Power LED 4W

Large Image :  50-60LM/W 3535 LED Chip 700mA 1000mA High Power LED 4W

Product Details:
Place of Origin: CHINA
Brand Name: LEARNEW
Certification: CE RoHS SGS
Model Number: LN-SMD3535SB-P3-LP;LN-SMD3535SB-P4-LQ;LN-SMD3535RB-P3-E45
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable price
Packaging Details: Anti-static Blister packing
Delivery Time: 7-12 working days
Payment Terms: T/T, L/C, Western Union

50-60LM/W 3535 LED Chip 700mA 1000mA High Power LED 4W

Description
POWER: 3W;4W Radiant Angle: 120°
SUBSTRATE: Ceramic CCT: Blue;Royal Blue
IF: 700mA;1000mA CIRCUIT: 1PCS In Series 1PCS In Parallel
High Light:

60LM/W 3535 LED Chip

,

700mA High Power LED 4W

,

1000mA High Power LED 4W

3535 465-475nm 440-450nm 700mA 1000mA 3W 4W high power led50-60LM/W 3535 LED Chip 700mA 1000mA High Power LED 4W 0

models LN-SMD3535SB-P3-LP LN-SMD3535SB-P4-LQ LN-SMD3535RB-P3-E45
POWER 3W 4W 3W
CCT

Blue=465-475nm

Blue=465-475nm

Royal Blue=440-450nm
LUMINUOUS EFF 30-40LM/W 50-60LM/W 1000-1200mw
IF 700mA 1000mA 700mA
VF 3.0-3.4V 3.0-3.4V 3.0-3.4V
CIRCUIT 1PCS in series
1PCS in parallel
1PCS in series
1PCS in parallel
1PCS in series
1PCS in parallel
LES R3.0MM R3.0MM R3.0MM
VIEW ANGLE 120° 120° 120°
SUBSTRATE Ceramic Ceramic Ceramic
WHOLE SIZE 3.5*3.5MM 3.5*3.5MM 3.5*3.5MM

50-60LM/W 3535 LED Chip 700mA 1000mA High Power LED 4W 1

Design Advantage:

  • Ceramic leadframe.
  • High ESD pass
  • Standard A Class chips.
  • Cost performance.
  • Gold wire bond.
  • Easy reflow sodering.

50-60LM/W 3535 LED Chip 700mA 1000mA High Power LED 4W 2



Cautions 1w high power led chip, 3w high power led chip

1) Soldering Conditions

Number of reflow process shall be less than 2 times and cooling process to normal temperature is required between first and Second soldering process.



2) Static Electricity

It is recommended that a wrist band or an anti-electrostatic glove be used when handling the LEDs.All devices, equipment and machinery must be properly grounded.Damaged LEDs will show some unusual characteristics such as the forward voltage becomes lower, or the LEDs do not light at the low current. Criteria : (VF > 2.0V at IF=0.5mA)

50-60LM/W 3535 LED Chip 700mA 1000mA High Power LED 4W 3

Q1: Do you supply OEM,ODM service?

A1: YES,absolutely it can be realized.



Q2: All the pictures are real photo?

A2: Yes, the pictures of all products on this page are 100% real shoot by us.



Q3: How can I get a quotation from you?

A3: Please kindly leave us messages about your needs,including products and quantity,our professional team will reply you very soon (mostly within few hours).
